Endoluminal Workflow#

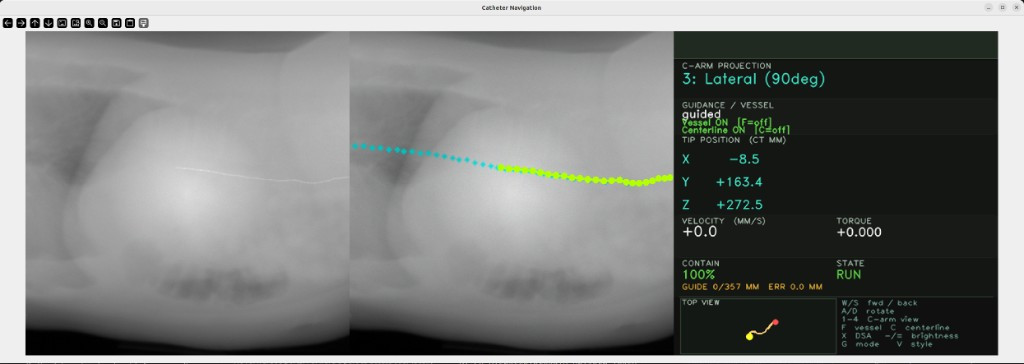

Endoluminal Workflow

Overview#

The Endoluminal Workflow provides a GPU-accelerated simulation environment for training and deploying autonomous endovascular catheter and guidewire navigation systems. It combines a physics-accurate fluoroscopy (X-ray) renderer with an XPBD rod physics solver and a patient vasculature digital twin, forming a complete data factory for reinforcement learning and imitation learning policies.

The workflow is designed for interventional cardiology researchers, medical device manufacturers, and AI policy developers working on tasks such as TAVR (Transcatheter Aortic Valve Replacement) guidance, coronary intervention, and endovascular navigation.

Table of Contents#

System Architecture#

The workflow is organized as a unified simulation loop that couples imaging and device physics over the same patient digital twin:

flowchart LR
  A[CT input: DICOM/NIfTI] --> B[preprocess_ct: HU -> mu volume + metadata]
  B --> C[segment_vessels: mask + centerline]
  C --> D[Digital twin artifacts: vessel mask/mesh/centerline]
  D --> E[XCathRodSolver: catheter state update per frame]
  D --> F[Slang DRR/DSA renderer: X-ray projection]
  E --> G[Catheter segments in CT frame]
  G --> F
  F --> H[Interactive viewport output]
  H --> I[Policy data / evaluation / demo loop]

At runtime, user controls update the catheter state in XCathRodSolver, then the renderer composites catheter attenuation into DRR/DSA in the same frame.

Key Components#

Fluoroscopy Simulator (fluorosim)#

GPU-accelerated Digitally Reconstructed Radiograph (DRR) renderer implemented in Slang:

  • Beer-Lambert catheter compositing — fused ray march that correctly composites catheter attenuation with the CT background in a single GPU dispatch
  • Batched multi-environment rendering — single-dispatch rendering for N parallel RL environments via Texture2DArray
  • DSA pipeline — Digital Subtraction Angiography with independent noise, Compton scatter, and sub-pixel misregistration
  • Detector realism — gain/bias, Poisson noise, Gaussian noise, PSF blur, gamma correction
  • Differentiable rendering — Slang autodiff for gradient-based pose estimation

Physics Solver (catheter-vasculature-solver)#

XPBD Cosserat rod solver for real-time catheter and guidewire simulation:

  • XPBDRodSolver — batched multi-rod GPU solver with CUDA graph capture
  • XCathRodSolver — extends XPBDRodSolver with vessel-mesh containment (SDF/BVH + AABB/edge broadphase) and track-guided insertion
  • NewtonXPBDRodSolver — Newton-XPBD hybrid solver

Vasculature Digital Twin (vasculature-digital-twin)#

Patient-specific vessel reconstruction from CT:

  • CT ingestion (DICOM/NIfTI), HU thresholding, TotalSegmentator segmentation
  • VTK marching cubes meshing, Windowed Sinc smoothing
  • VMTK / Dijkstra centerline extraction
  • Warp BVH mesh for GPU collision queries

Decoupled CatheterProvider Interface#

The FluoroSimulator is decoupled from the physics solver via the CatheterProvider protocol. Any solver (or custom data source) can be attached without modifying the renderer:

from fluorosim import FluoroSimulator
from fluorosim.catheter_provider import SolverCatheterAdapter
from fluorosim.catheter import XCathRodSolver

solver = XCathRodSolver(...)  # see fluorosim/examples for full construction
provider = SolverCatheterAdapter(solver, radii=0.5, mu_values=1.5, scale=1000.0)

sim = FluoroSimulator(volume, config, catheter_provider=provider)

for pose in trajectory:
    solver.step(dt)
    frame = sim.render_frame(pose=pose)   # catheter fetched automatically

Directory Structure#

catheter_navigation/
├── scripts/
│   └── simulation/
│       └── fluorosim/          # Core fluoroscopy + physics simulator package
│           ├── catheter/       # XPBD rod solvers (XPBDRodSolver, XCathRodSolver)
│           ├── rendering/      # Slang DRR renderer + DSA pipeline
│           ├── catheter_provider.py  # Decoupled CatheterProvider protocol + adapters
│           ├── simulator.py    # FluoroSimulator high-level API
│           ├── preprocessor.py # CT volume preprocessing
│           └── vasculature.py  # Vessel mesh + centerline extraction
├── tests/
└── docker/

Requirements#

GPU#

  • NVIDIA GPU with CUDA Compute Capability ≥ 7.0 (Volta or later); Ampere (≥ 8.0) or newer recommended.
  • VRAM: ≥ 8 GB for single-environment interactive use; ≥ 16 GB recommended for batched multi-environment rendering / data generation.
  • Vulkan-capable driver (required by the Slang DRR renderer).

Driver & System#

  • CPU architecture: x86_64
  • Operating system: Ubuntu 22.04 or 24.04 LTS
  • NVIDIA driver: compatible with CUDA 12.8 (typically ≥ 570)
  • CUDA toolkit: 12.8 (matches the workflow Docker image)
  • System RAM: ≥ 16 GB (≥ 32 GB recommended for CT volume preprocessing + segmentation)
  • Storage: ≥ 20 GB free (workflow plus one CT subject; the TotalSegmentator small subset alone is ~3.2 GB)

Tested Configuration#

This workflow has been tested on the following configuration:

  • GPU: NVIDIA RTX A6000 (48 GB VRAM)
  • NVIDIA driver: 570.211.01
  • CUDA: 12.8
  • OS: Ubuntu 22.04.5 LTS (kernel 6.8.0)
  • CPU architecture: x86_64
  • System RAM: 125 GB

Quick Start#

Everything runs through the repo's ./i4h CLI from the repository root. List the available modes:

./i4h modes catheter_navigation

Then launch the interactive fluoroscopy viewport against a preprocessed CT cache (one-liner):

./i4h run catheter_navigation interactive_viewport --local --run-args="--ct-dir /tmp/ct_cache --vessel-source real --insertion-axis centerline --dsa"

See How to run for downloading a CT dataset and building the /tmp/ct_cache (preprocess → segment) that the command above expects.

Execution Paths (Host vs Docker)#

The same workflow can be run either on host Python (--local) or in Docker (default when --local is omitted):

  • Host / local (--local): uses your active host Python environment. In this mode, skills may create/use a local .venv and install dependencies there.
  • Docker (recommended for reproducibility): drop --local to run via the workflow containerized path that matches documented CUDA/runtime expectations. The image installs three reusable packages during build: public fluorosim (from i4h-sensor-simulation), plus vendored vasculature-digital-twin and catheter-vasculature-solver.

Examples:

# Host/local path (uses host Python environment)
./i4h run catheter_navigation render_drr --local --run-args="--output /tmp/drr.png"

# Docker path (recommended for consistent setup across machines)
./i4h run catheter_navigation render_drr --run-args="--output /tmp/drr.png"

How to run#

No data or digital twin is shipped. No CT scans, attenuation volumes, vessel masks, meshes, or centerlines are committed. You generate the vasculature digital twin locally from a CT volume you supply (preprocess_ct → segment_vessels). Bring your own data (e.g. the public TotalSegmentator dataset below) and comply with that dataset's license.

This workflow registers with the repo's ./i4h CLI, so each stage can be run either through the CLI or directly with python -m.

Via agentic skills#

In addition to direct CLI usage, this workflow supports the agentic skill path under skills/i4h-catheter-navigation*.

  • Start with skills/i4h-catheter-navigation/ as the router skill.
  • Then run stage skills for setup, digital twin generation, DRR render, viewport, smoke, or e2e.
  • Use this path when you want an agent to execute the workflow step-by-step from natural language prompts instead of manually issuing all commands.

Typical skill sequence:

  1. i4h-catheter-navigation-setup
  2. i4h-catheter-navigation-digital-twin
  3. i4h-catheter-navigation-render-drr and/or i4h-catheter-navigation-viewport
  4. i4h-catheter-navigation-smoke or i4h-catheter-navigation-e2e

Example natural-language prompts to run in an agent chat:

Run the catheter setup skill and verify prerequisites for this repo.

Build the digital twin for a subject (for example `s0065`) from `/path/to/cttotalsegmentator/s0065` into `/tmp/ct_cache`.

Render one DRR frame from `/tmp/ct_cache` and save it to `/tmp/catheter_drr_from_skill.png`.

Launch the interactive catheter viewport using `/tmp/ct_cache` with vessel-source `real`, centerline insertion, det-size `1024`, pixel-spacing `0.6`, DSA enabled, and key-hold-ttl `0.20`.

Run the catheter smoke skill and summarize pass/fail.

Run the catheter e2e skill and summarize completed vs skipped stages.

Expected artifacts after the skill flow:

  • Digital twin cache at /tmp/ct_cache with mu_volume.npy, metadata.json, and centerline/vessel outputs.
  • DRR frame at /tmp/catheter_drr_from_skill.png.
  • Smoke test summary (OK) and e2e stage summary in the agent response.

Via the i4h CLI#

Run these from the repository root (where the ./i4h script lives), not from workflows/catheter_navigation/. --local runs on the host; drop it to run in Docker. Extra arguments are forwarded with --run-args="…". The first Docker-backed run may trigger an image build that can take up to ~10 minutes.

cd /path/to/i4h-workflows          # repo root containing ./i4h
./i4h modes catheter_navigation        # list available modes
./i4h run catheter_navigation preprocess_ct --local \
  --run-args="--nifti /path/to/ct.nii.gz --output-dir /tmp/ct_cache --save-hu"
./i4h run catheter_navigation segment_vessels --local \
  --run-args="--ct-dir /tmp/ct_cache --ts-gt-dir /path/to/segmentations"
./i4h run catheter_navigation interactive_viewport --local \
  --run-args="--ct-dir /tmp/ct_cache --vessel-source real --insertion-axis centerline --det-size 1024 --pixel-spacing-mm 0.6 --dsa"

segment_vessels uses two different paths:

  • --ts-gt-dir: input TotalSegmentator labels (e.g. $SUBJ/segmentations)
  • --ct-dir: output cache location where generated digital-twin artifacts are written/read (e.g. /tmp/ct_cache)

interactive_viewport must always point --ct-dir to that generated cache output path.

Docker equivalents using mounted workspace data paths:

cd /path/to/i4h-workflows          # repo root containing ./i4h
./i4h run catheter_navigation preprocess_ct \
  --run-args="--nifti /workspace/i4h/data/ct_data/s0011/ct.nii.gz --output-dir /workspace/i4h/data/ct_cache/s0011 --save-hu"
./i4h run catheter_navigation segment_vessels \
  --run-args="--ct-dir /workspace/i4h/data/ct_cache/s0011 --ts-gt-dir /workspace/i4h/data/ct_data/s0011/segmentations"
./i4h run catheter_navigation interactive_viewport \
  --run-args="--ct-dir /workspace/i4h/data/ct_cache/s0011 --vessel-source real --insertion-axis centerline --det-size 1024 --pixel-spacing-mm 0.6 --dsa"

Directly with python -m#

Install local dependencies from the pinned requirements file (same environment used by ./i4h ... --local):

REPO_ROOT=/path/to/i4h-workflows
python3 -m venv "${REPO_ROOT}/.venv-cath"
source "${REPO_ROOT}/.venv-cath/bin/activate"
python -m pip install --upgrade pip setuptools wheel
python -m pip install -r "${REPO_ROOT}/workflows/catheter_navigation/requirements.txt"

Then run workflow commands. Viewport/render entry scripts live in this repo and import the installed packages:

cd workflows/catheter_navigation

1. Download a CT dataset (TotalSegmentator)#

Contrast-enhanced CTA subjects work best for vessel navigation. The dataset is published as a single zip, so download the small 102-subject subset (~3.2 GB) and extract one subject. Zenodo's direct download is heavily throttled, so prefer the authors' Dropbox mirror:

# Recommended: Dropbox mirror (full speed). Downloads into the current directory.
curl -L "https://www.dropbox.com/scl/fi/pee5yxebfxrhz007cbuy5/Totalsegmentator_dataset_small_v201.zip?rlkey=osvfk02jc4lw5gr6uhrldtb9e&dl=1" \
  -o Totalsegmentator_dataset_small_v201.zip
unzip Totalsegmentator_dataset_small_v201.zip -d Totalsegmentator_dataset_small_v201

# Fallback: Zenodo (throttled). Small subset is record 10047263; full set is 10047292.
# pip install zenodo_get && zenodo_get 10047263

ls Totalsegmentator_dataset_small_v201   # list subjects, pick one

2. Build the digital twin from a subject#

The patient digital twin generation stage is reused from the i4h-sensor-simulation ecosystem via the packaged vasculature-digital-twin module (invoked below with python -m vasculature_digital_twin.cli.*), while this workflow composes those outputs with catheter solver and interactive viewport modes.

SUBJ=/path/to/Totalsegmentator_dataset_small_v201/s0011   # any extracted subject
CACHE=/tmp/ct_cache

# CT → attenuation volume (mu_volume.npy + metadata.json); keep HU for masking
python -m vasculature_digital_twin.cli.preprocess_ct --nifti "$SUBJ/ct.nii.gz" --output-dir "$CACHE" --save-hu

# Segment the arterial tree → vessel_mask + centerline (this IS the digital twin)
# NOTE:
#   - "$SUBJ/segmentations" is input labels only.
#   - "$CACHE" is where generated digital-twin outputs are written.
python -m vasculature_digital_twin.cli.segment_vessels --ct-dir "$CACHE" --ts-gt-dir "$SUBJ/segmentations"

3. Interactive viewport#

python scripts/simulation/fluorosim/examples/interactive_catheter_slang_viewport.py \
  --ct-dir /tmp/ct_cache \
  --vessel-source real --insertion-axis centerline \
  --det-size 1024 --pixel-spacing-mm 0.6 --dsa

Controls#

Input Action
W / S (or ↑ / ↓) Advance / retract the catheter along the centerline
A / D (or ← / →) Rotate catheter CCW / CW
Shift Boost command magnitude
F Toggle vessel overlay
C Toggle centerline overlay
X Toggle the DSA contrast bolus on / off
− / = DSA brightness: darker / brighter
V Toggle visual style (cinematic / default)
1 / 2 / 3 / 4 C-arm projection: AP / LAO-45 / Lateral / RAO-30
Space Pause / resume
R Reset catheter to initial state
Q / Esc Quit
Mouse left-drag Horizontal = insertion/retraction velocity; vertical = torque

Troubleshooting#

Remote / headless displays: viewport controls appear dead#

On some Linux X11 setups (VNC, Chrome Remote Desktop, virtual :N displays) OpenCV's Qt build auto-selects a platform plugin that never delivers key events, so the interactive viewport's controls appear dead. The viewport forces the xcb plugin automatically; if input still doesn't register, launch with the plugin set explicitly — via the ./i4h CLI:

QT_QPA_PLATFORM=xcb ./i4h run catheter_navigation interactive_viewport --local --run-args="--ct-dir /tmp/ct_cache --vessel-source real --insertion-axis centerline --dsa"

or directly with python -m:

QT_QPA_PLATFORM=xcb python scripts/simulation/fluorosim/examples/interactive_catheter_slang_viewport.py …

Many remote window managers also use focus-follows-mouse: keep the mouse pointer over the fluoro image while pressing keys, or the input is routed elsewhere.

CMake cache mismatch after switching Docker/local#

If you see errors like:

  • CMakeCache.txt directory ... is different than ... /workspace/i4h/...
  • The source ... does not match the source ... used to generate cache

you are reusing a build cache generated by a different path context (Docker vs host). Clear the workflow build directory and rerun:

cd /path/to/i4h-workflows
rm -rf build/catheter_navigation
