X-ray comparison against DRR-RATE#

Generated and compared 40 matched X-ray views from 20 distinct CT-RATE validation subjects, with AP and lateral views for each subject. The reference images are published DRR-RATE PNGs generated by the independent Siddon–Jacobs renderer. The i4h simulator source was unchanged at commit 8b3753f555314179835b8dd266ccaeb60b83c203.

Measured agreement#

Each value is the median across per-subject AP/lateral medians. Shape SSIM includes an in-sample gain/bias fit; it does not establish intensity calibration.

Signal model NCC Gradient NCC Shape SSIM Matched beats misposed
Matched DRR-RATE signal model 0.9985 0.9637 0.9609 40/40
Stock simulator HU mapping 0.8567 0.5427 0.7201 40/40

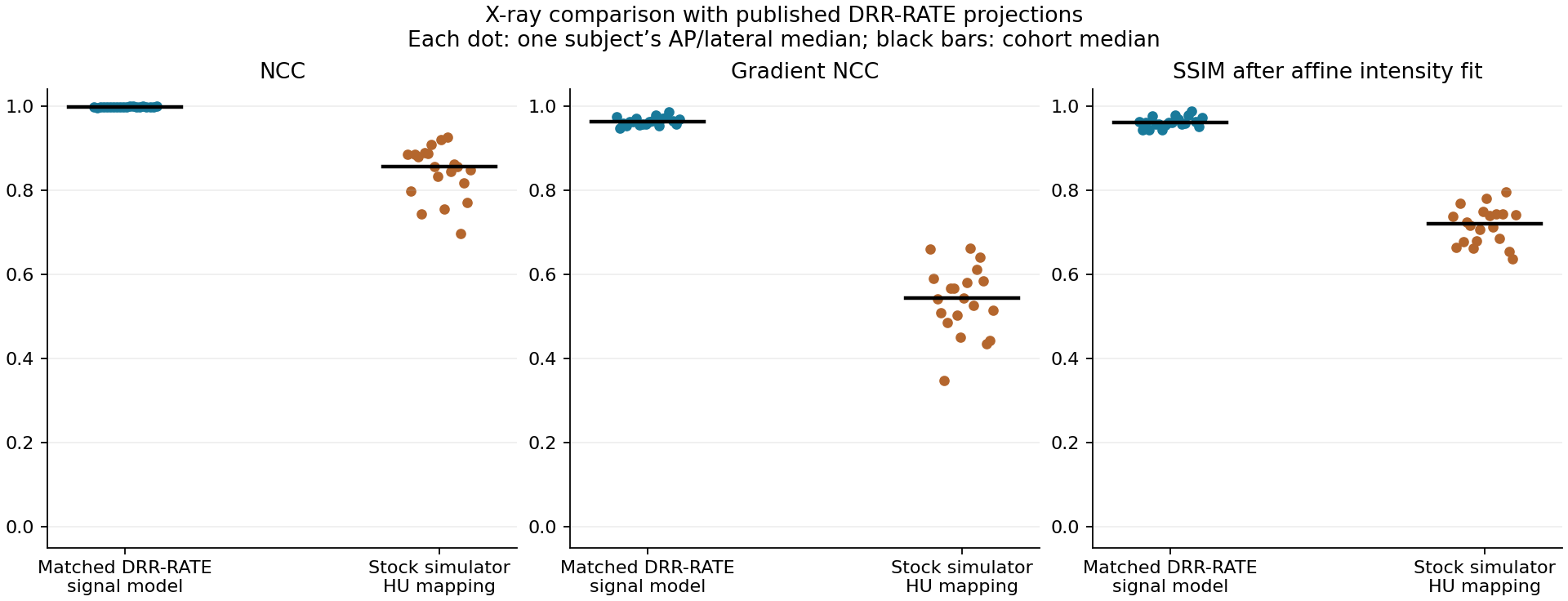

Structural comparison

The matched recipe uses the published -100 HU threshold: mu_proxy = max(trunc(HU)+100,0) * 1e-5 /mm. The stock mapping uses the simulator's actual HuToMuMapping() defaults, from -1000 HU / 0 per mm to 3000 HU / 0.02 per mm. Both use the same source-derived projection geometry. No registration, pose optimization, or reference-fitted window was applied.

Using the matched signal model and emulating the reference export (alpha-integral, signed-short quantization, generated-image min/max scaling, 8-bit output), display SSIM was 0.961. This export normalization is part of matching the published synthetic pipeline; it does not validate absolute brightness. The simulator's fixed [0,6] X-ray window scored 0.297 with the matched signal model and 0.666 with the stock HU mapping.

Scope and interpretation#

This is an independent synthetic X-ray renderer comparison. It adds a chest dataset beyond the earlier DeepFluoro/Ljubljana experiment. Strong agreement under the matched recipe supports geometric and projection-structure consistency with the published DRRs. Results for the stock mapping are reported separately because its signal model differs from DRR-RATE.

DRR-RATE images are synthetic; this is not validation against real diagnostic radiographs. The experiment does not validate dose, spectrum, scatter, noise, detector response, temporal behavior, clinical findings or task performance. No pass/fail threshold was defined. The cohort is a deterministic 20-subject subset, not the full validation split.

Verification and controls#

  • All 40 pairs completed under both mappings, producing 80 scored comparisons and independent misposed controls.
  • Every subject's AP view with the matched recipe was also rendered at 0.25 mm versus the normal 0.5 mm integration step. Maximum relative L2 difference: 0.435%.
  • Every render was checked against the shader's 2048-step limit. No transmission values hit the attenuation extraction floor.
  • The control increments the camera translation parameter by 5 mm along simulator X and premultiplies its orientation by a 5° world-Z rotation. Complete poses are retained in each record.
  • All source CT files passed upstream SHA-256 checks. The CT-RATE v1 HU intercept/slope and voxel-spacing corrections came from the authors' validation metadata.
  • All simulator source hashes match the pre-run snapshot. Numerical integration checks measure consistency, not external physical calibration.

Inspect the results#

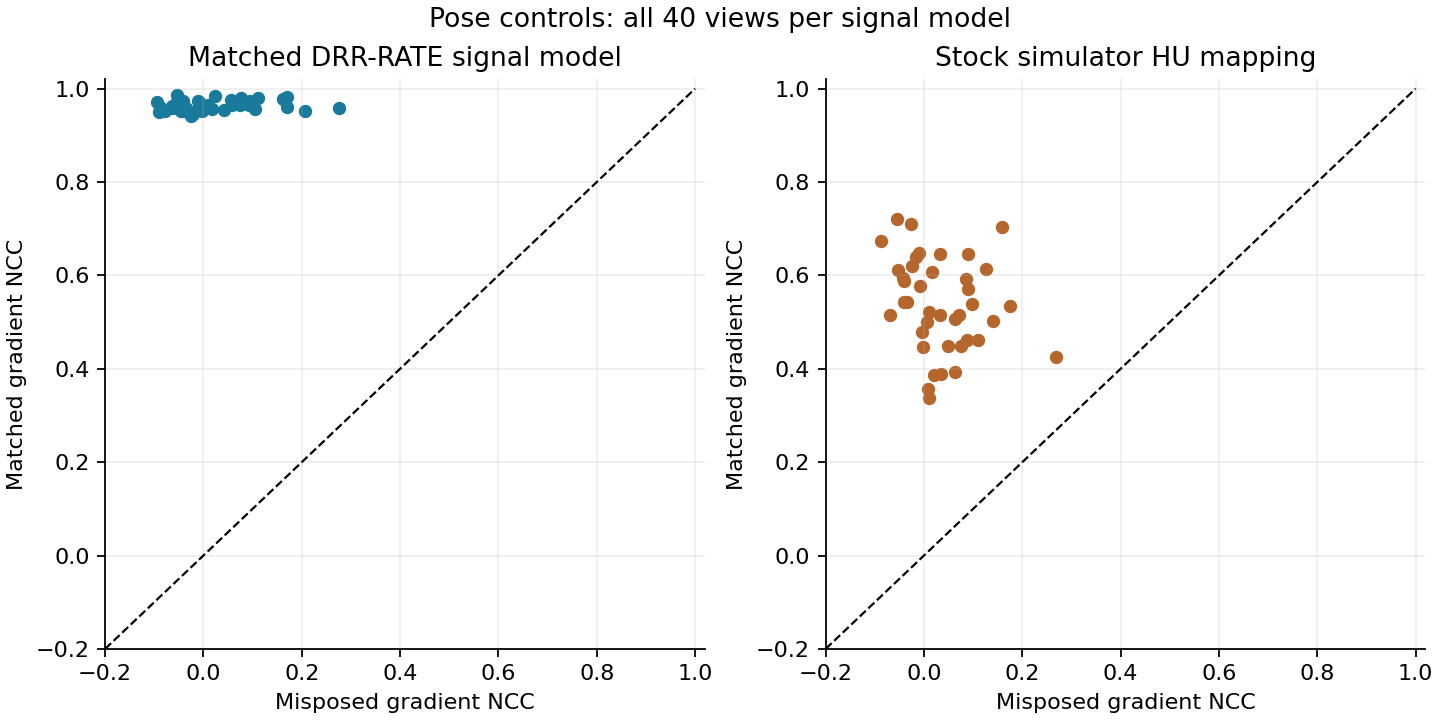

Matched and misposed controls

The full per-view records are stored in metrics/, split by case. Concatenate the arrays listed in report.json's pair_files order to reconstruct the original report's pairs array. All numerical values are unchanged. The directory fields in JSON and CSV refer to paths inside the local render output, not files in this repository.

The interactive image report (REPORT.html), all-subject anatomy sheets, source volumes, reference/generated anatomy images, and raw arrays remain local. References and generated anatomy images retain their dataset restrictions; the simulator license does not relicense them.

Reproduce locally#

Use the simulator commit recorded above and the package versions and dataset revisions in protocol.json. Obtain the CT-RATE and DRR-RATE files under their respective dataset terms, preserving the relative paths in cohort.json. The validation-data directory must also contain ct_rate/dataset/metadata/validation_metadata.csv and ct_rate/dataset/metadata/no_chest_valid.txt from the recorded CT-RATE revision. These scripts do not download data or accept dataset terms.

Run from the checkout containing this report, with an environment providing the recorded dependencies and a CUDA-capable GPU. I4H_SENSOR_SIMULATION_REPO can point to a separate checkout at the recorded rendering commit:

export I4H_SENSOR_SIMULATION_REPO=/path/to/simulator-at-recorded-commit
export I4H_XRAY_VALIDATION_DATA=/path/to/validation-data
export OPENBLAS_NUM_THREADS=1
export OMP_NUM_THREADS=1
python xray-simulator/docs/reports/drr-rate/render_and_compare.py \
  --output /path/to/new-local-output
python xray-simulator/docs/reports/drr-rate/build_local_report.py \
  /path/to/new-local-output

Choose a new output directory. The renderer produces all 80 comparisons, the misposed controls, and the 20 integration checks. The local report builder verifies those outputs, computes summaries, and creates the interactive image gallery and anatomy sheets. Machine-specific input paths in the archived renderer were replaced by environment variables and adjacent cohort/selection manifests; rendering and metric calculations are unchanged.
