🔬 Overview#

The SO-ARM Starter Workflow demonstrates autonomous surgical instrument handling with the SO-ARM101 robotic arm and an NVIDIA GR00T N1.5 vision-language policy. You can collect teleoperation data in NVIDIA Isaac Sim or on real hardware, train or fine-tune the policy on your data, and then deploy to simulation or a physical SO-ARM101.

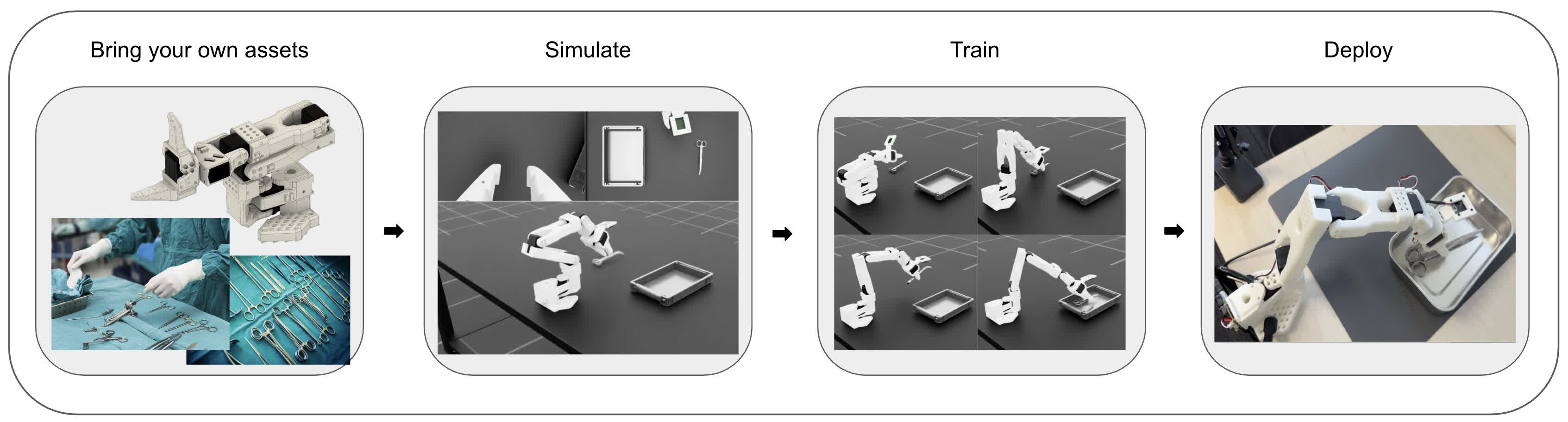

The SO-ARM Starter workflow consists of three main phases: data collection, model training, and policy deployment. Each phase can be run independently or as part of a complete pipeline.

📋 Table of Contents#

Setup#

Hardware Requirements#

This workflow supports the following platforms:

Platform Supports Additional Notes
x86_64 Workstation Simulation, training, and real deployment Requires Intel or AMD CPU and NVIDIA GPU (Ampere or later) with ≥30GB GDDR6/HBM RAM
NVIDIA DGX Spark Workstation Simulation, training, and real deployment Append --docker-file=workflows/so_arm_starter/docker/dgx.Dockerfile to demo commands, or update the metadata dockerfile field
NVIDIA Jetson Thor Deployment Append --docker-file=workflows/so_arm_starter/docker/dgx.Dockerfile to demo commands, or update the metadata dockerfile field
NVIDIA Jetson Orin Deployment Append --docker-file=workflows/so_arm_starter/docker/orin.Dockerfile --as-root to demo commands, or update the metadata dockerfile field
  • SO-ARM101 Robotic Arm Developer Kit: This 6-degree-of-freedom (6-DOF) manipulator provides the mechanical foundation for the SO-ARM Starter workflow. For detailed specifications and hardware recommendations, see the official SO‑ARM 101 hardware recommendations.
  • SO-ARM101 Follower Arm: 6DOF robot manipulator with gripper and wrist-mounted camera module.
  • SO-ARM101 Leader Arm: 6DOF teleoperation interface for data collection.
  • External USB Camera: An external USB camera (not an integrated laptop camera) with 1080p resolution and 30fps capability.
  • Props for Default Deployment: If demoing the default policy on real hardware, you will need to recreate the surgical scene with a table, scissors, and a tray matching the training environment.

Platform-Specific Notes#

DGX Spark / Orin / Thor:

  • Build times may be longer (~20-60 minutes) due to compilation of architecture-specific dependencies.
  • Ensure sufficient disk space (50GB+) for build cache.
  • The ARM64 SBSA and Tegra iGPU Dockerfiles (dgx.Dockerfile, orin.Dockerfile use base images that are optimized for the ARM64 architecture. The SBSA container is compatible with DGX Spark or Jetson AGX Thor platforms, whereas the iGPU container is compatible with Jetson Orin (Jetpack 6.x) platforms.

The simulation environment will run on the host and not in a container. The simulation process may communicate with a policy deployment across container boundaries via DDS.

x86_64:

  • TensorRT optimization recommended for real-time deployment.
  • Generally has the fastest optimized inference performance. See benchmarks for details.

Software Requirements#

  • Operating System: Ubuntu 22.04/24.04 LTS
  • NVIDIA Driver: ≥535.0
  • Docker with NVIDIA GPU support

RTI Connext DDS Prerequisites#

This workflow relies on RTI Connext 7.3.0 for DDS communication. To obtain a license/activation key, see the RTI Connext Express registration page. Please see the usage rules for Connext Express.

Set up your host environment a path to your local license or a URL to download a new evaluation license:

# Pre-downloaded license file on the host system
export RTI_LICENSE_FILE=/path/to/your/rti_license.dat

# Or, URL to retrieve a new evaluation license
export RTI_LICENSE_URL="https://content.rti.com/l/983311/2025-07-25/q6729c"

RTI Connext DDS Multicast Discovery: Please open ports 7400 and 7401 in your firewall to enable RTI DDS multicast to and from the static IPv4 239.255.0.1. Refer to RTI Connext DDS documentation for details.

sudo ufw allow in proto udp to 239.255.0.1 port 7400:7401
sudo ufw allow out proto udp to 239.255.0.1 port 7400:7401

Enable SO-ARM101 Serial Communication#

[!NOTE] First-time setup with ./i4h run may take up to one hour.

# Run and follow the prompts to identify leader and follower arm ports
./i4h run so_arm_starter find_ports

# Update permissions as needed
sudo chmod 666 </dev/ttyUSB0>
sudo chmod 666 </dev/ttyUSB1>

[!TIP] The workflow may request that you calibrate your SO-ARM101 on your first run. Please refer to the calibration video for guidance.

Set up the Real Scene (Optional)#

If deploying the pre-trained GR00T N1.5 policy on real SO-ARM101 hardware, please set up the physical scene to match the training environment as shown below, with the wrist camera view matching the left image and room camera view matching the right image.

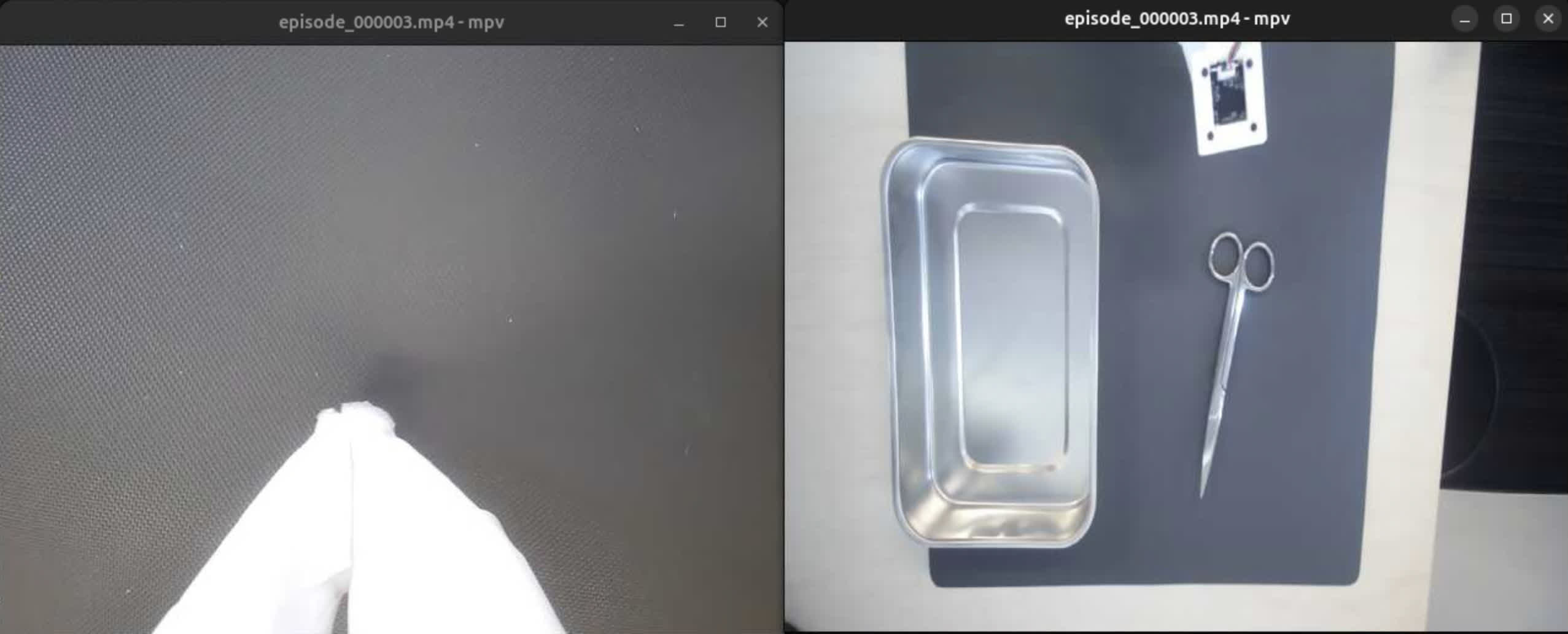

Real World Camera View Setup - Required camera positions for model deployment

Run the following command to capture and review images from each camera:

./i4h run so_arm_starter find_cameras

🤖 Quick Start: Deploy the Default Policy in Simulation#

In this guide we run the simulated SO-ARM101 in the default demo simulation environment with our pre-trained GR00T N1.5 model to "pick and place" surgical instruments on a table.

[!NOTE] First-time setup with ./i4h run may take up to one hour.

Step 1: Launch the Simulation Environment#

./i4h run so_arm_starter sim_env

This starts Isaac Sim with the robot scene. Keep this terminal running.

Step 2: Run the Policy (New Terminal)#

./i4h run so_arm_starter policy

You should now see the simulated robot arm moving to pick the surgical scissors and place them in the tray.

🤖 Quick Start: Deploy the Default Policy to Real SO-ARM Hardware#

In this guide we run our pre-trained GR00T N1.5 model with the physical SO-ARM101 follower arm to "pick and place" real surgical instruments.

The pre-trained model is trained with the following parameters:

  • Text Prompt: Grip the scissors and put it into the tray
  • Fixed Camera Views: wrist camera (left) and room camera (right)

First, update soarm_robot_config.yaml with the serial port for your SO-ARM 101 follower arm. Then, run the pre-trained policy to drive the SO-ARM follower arm via serial communications:

./i4h run so_arm_starter real_deploy

Guide: Collect Data with SO-ARM101 Leader or Keyboard#

In this guide we teleoperate a simulated follower arm with a real leader arm to collect policy training data.

Collect Data in Isaac Sim#

Run the following command to teleoperate the SO-ARM device with the real leader and simulated follower device. Once the Isaac Sim scene loads, you will see the simulated follower arm respond to the leader. Follow the console prompts to exit when you are done with training collection.

# Leader arm teleoperation with recording
./i4h run so_arm_starter sim_teleop --run-args=" \
  --port=</dev/ttyUSB0> \
  [--dataset_path=my_demo.hdf5]"   # use the serial port for your follower arm

Data will be available at i4h-workflows/data/so_arm_starter/my_demo.hdf5.

Replay Recording in Isaac Sim (Optional)#

You may replay collected training episodes in Isaac Sim to verify quality:

./i4h run so_arm_starter replay --run-args="\
    --dataset_path=my_demo.hdf5"

Alternative: Collect Data with Keyboard-Based Teleoperation#

For users without SO-ARM101 hardware, keyboard-based teleoperation is available for simulation.

[!WARNING] The leader arm provides much more control than the keyboard teleop. We strongly recommend using the leader arm for data collection.

Run the command below to teleoperate the simulated SO-ARM follower arm with a standard keyboard.

./i4h run so_arm_starter sim_keyboard --run-args="\
  [--dataset_path=keyboard_demo.hdf5]"

Data will be available at i4h-workflows/data/so_arm_starter/keyboard_demo.hdf5.

Simulation Controls:

  • R Key: Reset recording environment and stop current recording
  • N Key: Mark episode as successful and reset environment
  • Keyboard Controls (when using keyboard teleop):
  • Joint 1 (shoulder_pan): Q (+) / U (-)
  • Joint 2 (shoulder_lift): W (+) / I (-)
  • Joint 3 (elbow_flex): E (+) / O (-)
  • Joint 4 (wrist_flex): A (+) / J (-)
  • Joint 5 (wrist_roll): S (+) / K (-)
  • Joint 6 (gripper): D (+) / L (-)

These keyboard controls differ from the Isaac Sim default Se3Keyboard controls. For more information please refer to the leisaac project implementation.

Alternative: Collect Data with Real SO-ARM101 Leader and Follower Teleoperation#

Users with SO-ARM101 hardware may choose to collect real-world data in addition to or in place of Isaac Sim training episodes.

Run the command below to use lerobot scripts to teleoperate the real SO-ARM follower arm with the real SO-ARM leader arm.

./i4h run so_arm_starter teleop_real --run-args="\
    --robot.port=<follower_port_id> \
    --teleop.port=<leader_port_id> \
    --dataset.repo_id=<datasets/test> \
    --dataset.single_task='<task description>' \
    [--display_data=true] \
    [--dataset.num_episodes=5] \
    [--dataset.episode_time_s=60] \
    [--dataset.reset_time_s=60]

Recorded datasets will be available by default at ./.cache/huggingface/lerobot.

[!TIP] For more details about real-world data collection using physical SO-ARM101 hardware, refer to the LeRobot Data Collection Documentation.

🎯 Guide: Fine-tune a Policy for SO-ARM101#

[!NOTE] Please collect training data before proceeding to training.

Convert Isaac Sim Teloperation Data#

If you collected training data with Isaac Sim, first convert data into LeRobot format for GR00T fine-tuning:

# Update training data permissions
chown $(id -u):$(id -g) path/to/my_demo.hdf5

# Convert HDF5 to LeRobot format
# Output data will be available at .cache/huggingface/lerobot/my_dataset
./i4h run so_arm_starter convert --run-args="\
  --repo_id=<my_dataset> \
  --hdf5_path=<my_demo.hdf5> \
  --task_description=<'My pick and place task'>"

Run GPU-based Fine-Tuning#

Run the following command to use your teleoperation data to fine-tune the GR00T N1.5 pre-trained model:

./i4h run so_arm_starter train --run-args="\
  --dataset_path=</workspace/i4h/.cache/huggingface/lerobot/my_dataset> \
  --output_dir=</workspace/i4h/data/so_arm_starter/checkpoints> \
  [--batch_size=32] \
  [--max_steps=10000]"

[!TIP] If you see an "out of memory" error on DGX Spark or another supported training platform, please reduce your batch size using the parameters above.

Convert to TensorRT Engine (Optional)#

Please refer to the TensorRT Inference section to convert the resulting policy checkpoint to an optimized NVIDIA TensorRT engine file.

🚀 Guide: Deploy a Custom Policy#

Deploy to Simulated SO-ARM#

Launch the simulation environment:

./i4h run so_arm_starter sim_env

Run the policy in another terminal or process:

./i4h run so_arm_starter policy --run-args="\
  [--ckpt_path=path/to/ckpt] \
  [--task_description='Custom task']"

Deploy to Real SO-ARM#

Update soarm_robot_config.yaml with the mount path to the model folder path or TensorRT engine path. Note that the i4h-workflows path will mount to the /workspace/i4h container path by default, please update paths accordingly.

Then, run the following command on the host system with the SO-ARM device connected:

./i4h run so_arm_starter real_deploy

User Guide: Workflow CLI Commands#

The SO-ARM Starter Workflow provides a collection of convenient tools for common user operations. Please refer to the table for details.

Setup & Calibration#

Mode Description Required --run-args
calibrate_follower Calibrate follower arm --robot.port=/dev/ttyUSBx
calibrate_leader Calibrate leader arm --teleop.port=/dev/ttyUSBx
download_model Download pretrained SO-ARM Starter model Override: --local-dir /path
find_cameras Find available camera indices None
find_ports Find SO-ARM101 serial USB ports None
login_hf Log in to Hugging Face (optional, for gated models) None

Phase 1: Data Collection#

Mode Description Required --run-args
sim_keyboard Isaac Sim + keyboard control None (optional: --record --dataset_path=/path)
sim_teleop Isaac Sim + leader arm teleoperation --port=/dev/ttyUSBx
replay Replay recorded datasets --dataset_path=/container/path/to/data.hdf5

Phase 2: Model Training#

Mode Description Required --run-args
convert Convert HDF5 to LeRobot format --repo_id=name --hdf5_path=/path --task_description="..."
train Train GR00T N1.5 model --dataset_path=/path --output_dir=/path

Phase 3: Deployment#

Mode Description Required --run-args
policy Run policy inference None (uses downloaded model by default)
real_deploy Deploy to real hardware --config=/path/to/config.yaml
sim_env Launch Isaac Sim with DDS None

Common CLI Options#

Command or Flag Summary Example
modes Show all available modes for this workflow ./i4h modes so_arm_starter
run-container Launch an interactive session in the demo container ./i4h run-container so_arm_starter
--local Build and run on the host platform without relying on Docker containers ./i4h run so_arm_starter sim_keyboard --local
--no-docker-build Run in the container without attempting to rebuild the container ./i4h run so_arm_starter policy --no-docker-build
--dryrun View underlying CLI calls without running them ./i4h run so_arm_starter sim_keyboard --dryrun
--build-args Custom arguments passed to docker build ./i4h run so_arm_starter policy --build-args="--progress=plain"
--docker-opts Custom arguments passed to docker run ./i4h run so_arm_starter policy --docker-opts="-v /path/to/host/folder:/path/to/container/mount"
--verbose Run with verbose output ./i4h run so_arm_starter sim_keyboard --verbose
--help Show CLI help ./i4h run --help

Useful Environment Variables#

Variable Description
RTI_LICENSE_FILE Path to RTI DDS license file
RTI_LICENSE_URL URL for RTI license download (used when RTI_LICENSE_FILE is not set)
HOLOHUB_ALWAYS_BUILD Set to false to skip container rebuild
HOLOHUB_BUILD_LOCAL Set to 1 for local builds
HOLOHUB_DATA_PATH Set the parent directory for data read/write. Default: i4h-workflows/data directory, mounted at /workspace/i4h/data

Troubleshooting#

[!NOTE] Issue not resolved? Please submit a report at the Isaac for Healthcare Workflows GitHub Issues board.

1. RTI DDS License Issues#

RTI Connext DDS No source for License information
rti.connextdds.Error: Failed to create DomainParticipant

Solution:

This workflow requires RTI Connext Express. To obtain a license/activation key, see the RTI Connext Express registration page. Please see the usage rules for Connext Express.

# Set your RTI license file path
export RTI_LICENSE_FILE=/path/to/your/rti_license.dat

# Verify it's set correctly
echo $RTI_LICENSE_FILE
ls -la $RTI_LICENSE_FILE

# Check file permissions
chmod 644 $RTI_LICENSE_FILE

# Try running again
./i4h run so_arm_starter policy

Note: When RTI_LICENSE_FILE is set, the i4h CLI automatically mounts the license file into the container at /opt/rti/rti_license.dat. This applies to all DDS-based modes (sim_env, policy, real_deploy).

2. SO-ARM101 USB Device Not Found#

No serial ports found
  • Verify the SO-ARM device is connected and powered on.
  • Check device connection: ls /dev/ttyUSB* /dev/ttyACM*
  • Ensure user has permissions: sudo usermod -a -G dialout $USER
  • Review SO-ARM setup and verify device ports

3. Container Build Fails#

  • Try removing old images and then re-running:
docker images | grep so_arm_starter
docker rmi <image_id>

4. Docker Build or Run fails with exec format error#

exec format error
standard_init_linux.go: exec user process caused: exec format error

  • You may not be using the correct Dockerfile for your platform. Review which platform you are targeting, then use the appropriate --docker-file:

  • x86_64 → Use default docker/Dockerfile (or omit flag)

  • aarch64 DGX Spark → Use --docker-file=workflows/so_arm_starter/docker/dgx.Dockerfile
  • aarch64 Orin AGX → Use --docker-file=workflows/so_arm_starter/docker/orin.Dockerfile
  • aarch64 Thor → Use --docker-file=workflows/so_arm_starter/docker/dgx.Dockerfile

5. SO-ARM not moving / DDS publisher and subscriber not communicating#

RTI Connext DDS relies on networking communication across multiple ports for discovery and participation in DDS publish/subscribe mechanisms. If DDS multicast discovery fails, you may see the demo applications run without any clear output behavior, and the last console message may show the apps are waiting for DDS subscriptions.

# Policy process never receives SO-ARM information from Isaac Sim
0:topic_soarm_info - Thread is reading data => topic_soarm_info

# Isaac Sim simulation environment never receives policy directives
episode_idx: 0
0:topic_soarm_ctrl - Thread is reading data => topic_soarm_ctrl

Please visit RTI Connext DDS documentation for details on setting up firewall rules. We recommend running the SO-ARM starter workflow on a single workstation and with DDS domain ID 0 (default). If using UFW on Linux, the resulting commands to enable DDS communication for the app would be:

sudo ufw allow in proto udp to 239.255.0.1 port 7400:7401
sudo ufw allow out proto udp to 239.255.0.1 port 7400:7401
sudo ufw allow in  on lo
sudo ufw allow out on lo

With the resulting firewall configuration:

To                         Action      From
--                         ------      ----
...
239.255.0.1 7400:7401/udp  ALLOW       Anywhere
239.255.0.1 7400:7401/udp  ALLOW OUT   Anywhere
Anywhere on lo             ALLOW       Anywhere
Anywhere                   ALLOW OUT   Anywhere on lo

When the Isaac Sim processes launches, after a short initialization and discovery delay you should see that the simulated SO-ARM begins to move and execute the scissors pick-and-place task. At the end of each episode the scene will reload and you will see new output in the console window indicating the episode is re-starting.

episode_idx: 0
0:topic_soarm_ctrl - Thread is reading data => topic_soarm_ctrl

# New output on each episode
episode_idx: 0

episode_idx: 0

If issues persist: Please temporarily disable your firewall and re-launch the DDS-based applications. Consider the dds-ping utility for further DDS network debugging.

6. General Python Inspection and Debugging#

For detailed Python script options:

# Enter container interactively
./i4h run-container so_arm_starter

# Then check individual script help
python -m simulation.environments.teleoperation_record --help
python -m training.gr00t_n1_5.train --help

7. Failed to create shared memory named carb-RStringInternals-64 (non-root)#

Isaac Sim’s carb library can fail with:

Assertion (false) failed: Failed to create shared memory named carb-RStringInternals-64

This may occur when the container uses the host’s IPC namespace (--ipc=host): a previous run as root may have left a shared memory segment in /dev/shm that a non-root user cannot replace or access.

Options:

  1. Re-run the container: May work on second attempt if host shared memory has been cleaned up between runs
  2. Request dedicated shared memory: Run with --docker-opts="--shm-size=2g" or similar to request shared memory
  3. Run as root to bypass permission issues: ./i4h run so_arm_starter sim_env --as-root

📊 Latency Benchmarking#

This section presents inference latency benchmarks for model SO-ARM Starter GR00T across various NVIDIA platforms. All measurements use batch size 1, FP16 precision, dual camera input, and averaged over 100 rounds.

Platform Mode E2E Latency (ms)
X86_64 + RTX 6000 Ada PyTorch 42.08 ± 0.69
X86_64 + RTX 6000 Ada TensorRT 24.54 ± 0.63
AGX Orin PyTorch 507.47 ± 5.65
AGX Orin TensorRT 359.82 ± 3.37
IGX Thor (iGPU) PyTorch 107.85 ± 4.97
IGX Thor (iGPU) TensorRT 75.86 ± 8.98
AGX Thor PyTorch 109.43 ± 4.59
AGX Thor TensorRT 77.91 ± 9.63
DGX Spark PyTorch 124.32 ± 4.20
DGX Spark TensorRT 114.72 ± 5.34

References#
