Bring Your Own Head-Mounted Display with OpenXR

This guide helps you use your own OpenXR-enabled mixed reality device for simulated robotic teleoperation in Isaac Lab.

Robotic Surgery with XR Client

Background

The Robotic Ultrasound workflow provides an example of robotic teleoperation in an Isaac Lab simulation. Teleoperation serves as an alternative to manually defined state machine inputs, allowing a human operator to directly guide the robot in a task to collect policy training data. Isaac Lab supports multiple types of teleoperation inputs, ranging from traditional keyboard input to hand tracking from a mixed reality device such as the Apple Vision Pro headset.

Teleoperation with a mixed reality device provides two key advantages: - Immersive stereoscopic rendering in a headset provides an inherent sense of depth and scale to support fine task completion and relative positioning during operation. - Hand tracking control input can provide intuitive 6DOF control for faster training data collection, compared with other 6DOF inputs such as a keyboard or space mouse.

The OpenXR API is an industry standard supporting a variety of mixed reality headsets and related spatial computing devices. Application creators develop against a device-agnostic set of APIs, which can then be used with any OpenXR runtime published by mixed reality device providers.

Some examples of OpenXR runtimes include: - the NVIDIA CloudXR OpenXR container application - Valve's SteamVR application - Meta's Quest Link application

You may use Isaac Lab teleoperation with any OpenXR compatible device and associated runtime with hand tracking support. In this tutorial we will focus on the NVIDIA CloudXR OpenXR runtime with support for the Apple Vision Pro headset.

Prerequisites

Robotic Ultrasound in Isaac Lab

Please review the Robotic Ultrasound workflow setup instructions for minimum system requirements.

Mixed reality rendering can be GPU intensive. An NVIDIA RTX A6000 discrete GPU or greater is recommended. Performance may suffer on lower versions.

Mixed Reality Device

A mixed reality headset and associated runtime with OpenXR and hand tracking support is required for XR hand tracking teleoperation in Isaac Lab.

See the IsaacLab CloudXR Teleoperation Tutorial for system requirements and recommendations: - Apple Vision Pro headset with visionOS 2.0 or later - To build and deploy the Isaac XR Teleop Sample Client for Apple Vision Pro: - Apple Silicon based Mac with XCode 16 or later - An Apple Developer account - A dedicated Wifi 6 router (Local Area Network)

Additional host system requirements for the workstation running Isaac Lab are as follows: - Ubuntu 22.04 or later - Docker 26.0.0 or later - NVIDIA Container Toolkit 1.14 or later

Note that mixed reality rendering can be compute intensive. Review the NVIDIA CloudXR recommended Linux workstation specifications for best performance: - Intel Core i9 or AMD Ryzen 9 Threadripper (or higher) - 64GB RAM - 2x RTX 6000 Ada discrete GPUs (or equivalent)

Review the latest CloudXR Runtime End User License Agreement on NGC before running the CloudXR container.

Setup

Robotic Ultrasound Workflow

Please follow the Robotic Ultrasound workflow setup instructions to install dependencies, download assets, and set environment variables.

NVIDIA CloudXR Teleop Sample Client for Apple Vision Pro

Set up your Apple Vision Pro and enable Developer Mode.

On your Mac development machine, clone the Isaac XR Teleop Sample Client GitHub repository:

git clone https://github.com/isaac-sim/isaac-xr-teleop-sample-client-apple.git

Follow the repository README document to build the application and deploy to your Apple Vision Pro on the local network.

Note: Using an enterprise network may prevent your Apple Vision Pro, Macbook, and Linux host machine from discovering each other. Please consider using a dedicated router for setup and runtime.

NVIDIA CloudXR Runtime (Host System)

The NVIDIA CloudXR Runtime is a containerized OpenXR runtime for remote bidirectional streaming with the Apple Vision Pro device. In this section we will set up the runtime on the Linux host system to run alongside the Isaac Lab application and provide the OpenXR implementation for robotic teleoperation.

  1. Fetch the CloudXR Runtime container.

    docker pull nvcr.io/nvidia/cloudxr-runtime:0.1.0-isaac

  2. Create a folder for OpenXR data with your user permissions:

    cd path/to/i4h-workflows
mkdir -p openxr

  3. Open required firewall ports for CloudXR OpenXR connections:

    sudo ufw allow 47998:48000,48005,48008,48012/udp
sudo ufw allow 48010/tcp

  4. In a new terminal, run the CloudXR Runtime container with the mounted data folder:

    cd path/to/i4h-workflows
docker run -it --rm --name cloudxr-runtime \
    --user $(id -u):$(id -g) \
    --gpus=all \
    -e "ACCEPT_EULA=Y" \
    --mount type=bind,src=$(pwd)/openxr,dst=/openxr \
    -p 48010:48010 \
    -p 47998:47998/udp \
    -p 47999:47999/udp \
    -p 48000:48000/udp \
    -p 48005:48005/udp \
    -p 48008:48008/udp \
    -p 48012:48012/udp \
    nvcr.io/nvidia/cloudxr-runtime:0.1.0-isaac

You will see a message in the terminal when the runtime is ready:

################################################################################
#                                                                              #
#               The NVIDIA™ CloudXR™ Runtime service has started.              #
#                                                                              #
################################################################################

  1. Back in your Robotic Ultrasound workflow terminal, define the following environment variables:
    I4H_PATH=<path/to/i4h-workflows>
export XDG_RUNTIME_DIR=${I4H_PATH}/openxr/run
export XR_RUNTIME_JSON=${I4H_PATH}/openxr/share/openxr/1/openxr_cloudxr.json

Running XR Hand Tracking Teleoperation

App Settings (first run only)

After following the Robotic Ultrasound setup instructions, run the following to amend the local Isaac Lab XR configuration to enable cameras by default:

I4H_PATH=<path/to/i4h-workflows>
ISAAC_LAB_XR_KIT_CONFIG=$(find ${I4H_PATH}/third_party/IsaacLab/apps -name isaaclab.python.xr.openxr.kit)
I4H_XR_KIT_CONFIG=${I4H_PATH}/third_party/IsaacLab/apps/i4h.python.xr.openxr.kit
cp ${ISAAC_LAB_XR_KIT_CONFIG} ${I4H_XR_KIT_CONFIG}
echo "
[settings.isaaclab]
# This is used to check that this experience file is loaded when using cameras
cameras_enabled = true
" >> ${I4H_XR_KIT_CONFIG}

Launch Isaac Lab (Host System)

Run the following command to launch the teleoperation sample with XR support:

cd ${I4H_PATH}/workflows/robotic_ultrasound/scripts/simulation
python environments/teleoperation/teleop_se3_agent.py --enable_cameras --teleop_device=handtracking --experience ${I4H_XR_KIT_CONFIG}

The sample application will launch as normal with an extra tab titled "AR". Navigate to the "AR" tab and verify that "OpenXR" is selected as the output plugin.

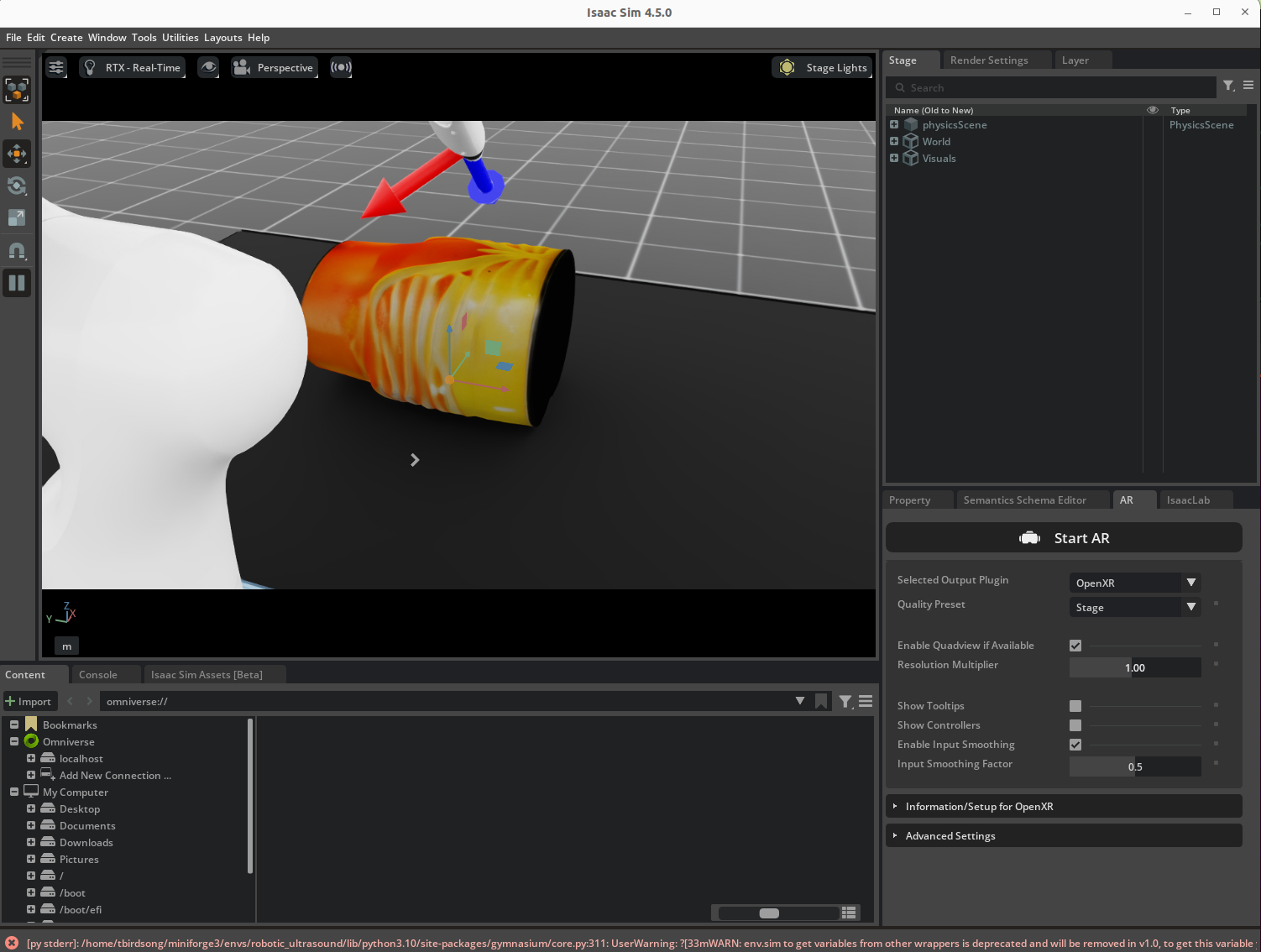

Sample Scene with AR Tab

Click the "Start AR" button to launch the scene into stereo rendering mode with OpenXR.

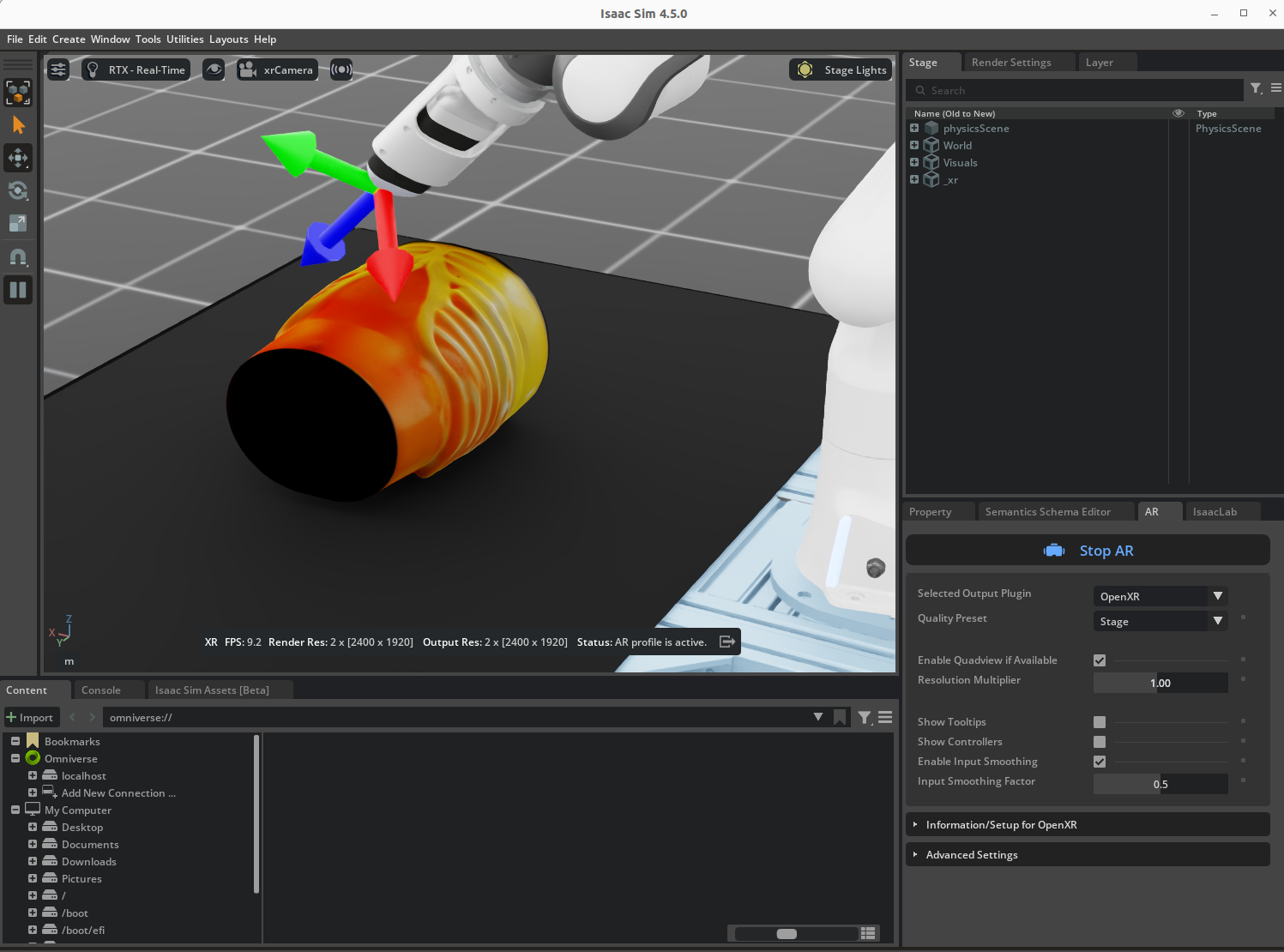

Sample Scene with AR Running

Note: You can enter and exit the XR scene at any time before or after connecting the Apple Vision Pro device. The CloudXR OpenXR Runtime will receive frames but not transmit to any device if no device is connected. Click "Stop AR" to exit the OpenXR session and return to the standard mono viewing mode.

Note: XR teleoperation updates are currently applied relative to the probe head. The coordinate system from the user's tracked right hand is applied along the local probe axes as pictured below: - Hand Tracking Left/Right -> Green axis - Hand Tracking Up/Down -> Blue axis - Hand Tracking Towards/Away -> Red axis

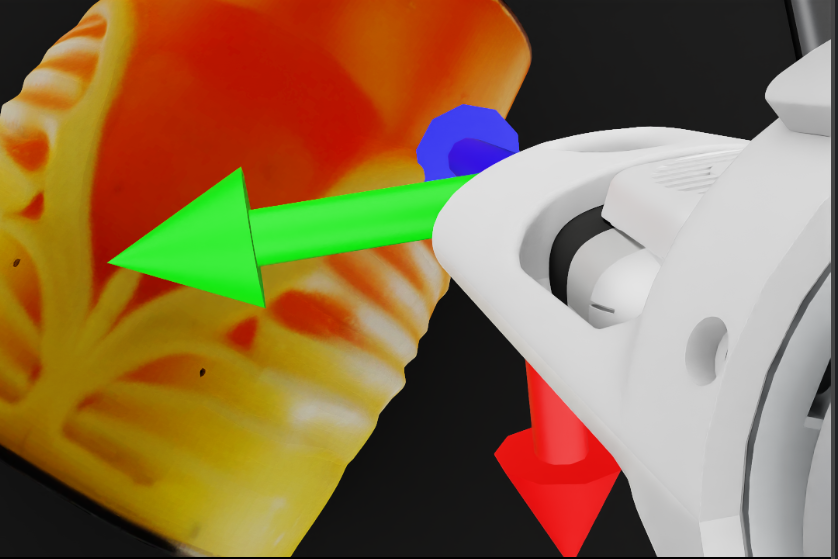

Coordinate frame as viewed along the robotic ultrasound probe

This mapping is achieved by a transform_matrix defined in the teleop_se3_agent.py script. The hand tracking system provides coordinates in its own frame, which needs to be converted to the robot's end-effector (probe) frame. The transform_matrix:

torch.tensor(
    [[-1, 0, 0, 0], [0, 1, 0, 0], [0, 0, -1, 0], [0, 0, 0, 1]],
    dtype=torch.float32,
    device=env.unwrapped.device,
)
This matrix effectively flips the X and Z axes of the incoming hand tracking data. Specifically: - The X-axis (Up/Down in hand tracking) is inverted. - The Y-axis (Left/Right in hand tracking) remains unchanged. - The Z-axis (Towards/Away in hand tracking) is inverted.

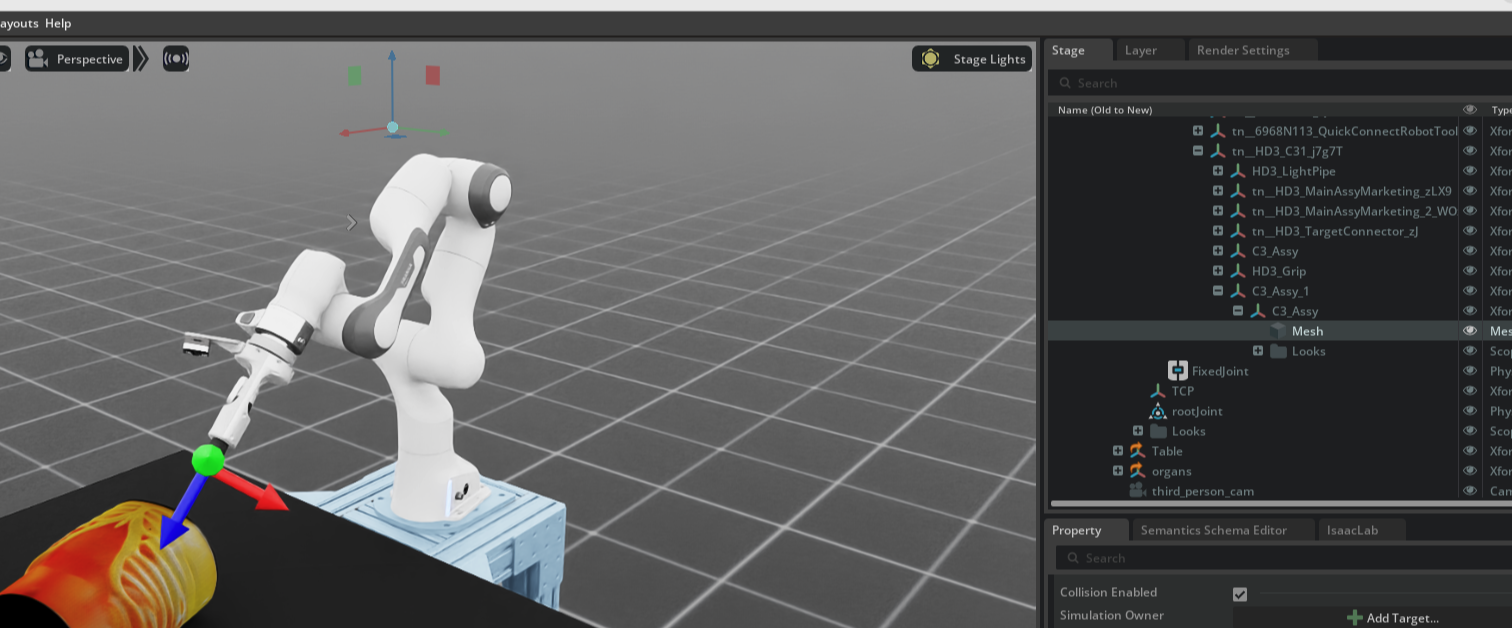

This transformation ensures that the user's hand movements are intuitively mapped to the robot's actions in the simulation environment. For a clearer understanding of how the transform_matrix maps hand tracking coordinates to the probe frame, please refer to the coordinate frame visualization below: Coordinate frame

Apple Vision Pro

Run the following command on your local workstation to view your IP address:

hostname -I | awk '{print $1}'

In your Apple Vision Pro headset, launch the Isaac XR Teleop Sample Client and enter your workstation IPv4 address from above. The UI will indicate a successful connection.

If you have previously launched the Isaac Lab scene into mixed reality mode, you will see an immersive rendering when you start the Apple Vision Pro client application.

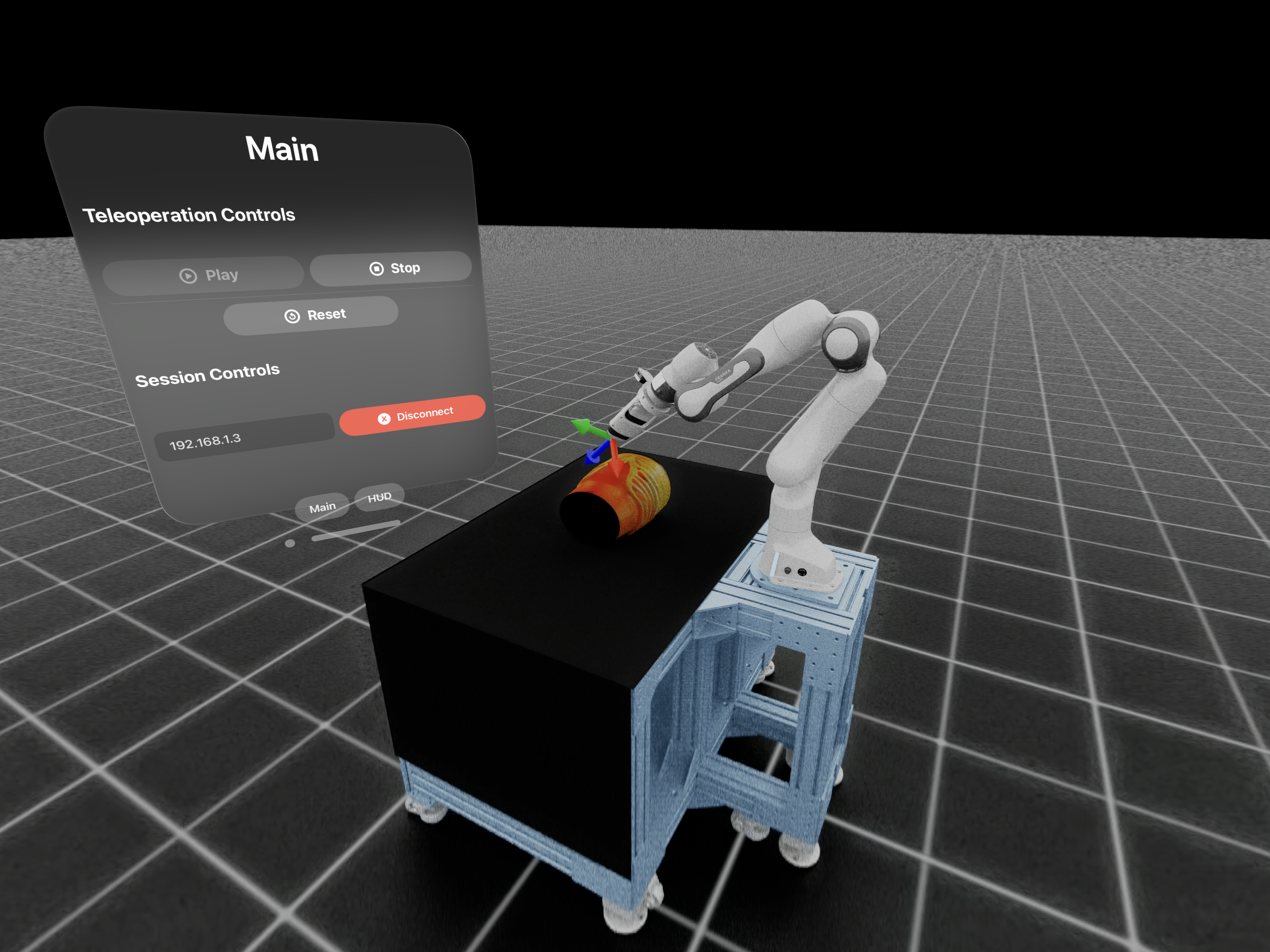

Robotic Ultrasound in Apple Vision Pro

Note: You can connect to and disconnect from the CloudXR runtime at any time without disrupting the Isaac Lab scene.

Use the CloudXR sample client UI in the Apple Vision Pro display to toggle among environment states: - STOPPED: The default environment state is for static viewing only. Teleoperation with hand tracking is not run. - STARTED: Enables teleoperation with hand tracking. 6DOF input from the right hand is used to inform the position of the target guide for the robotic ultrasound probe. - RESET: Resets the scene to the default position.

Limitations and Troubleshooting

  • Apple Vision Pro will not connect to Macbook or Linux workstation

Please ensure that all participating machines are available on the same non-enterprise local network and review your firewall settings. Verify that you have enabled Developer Mode on your Apple Vision Pro device.

  • Mixed reality device framerate performance suffers

Please ensure that your machine meets the recommended specifications for mixed reality teleoperation.

  • Why is camera output not available over DDS during XR teleoperation?

There is a known issue where the sample application encounters a blocking error if cameras are polled during XR teleoperation with an error such as follows:

RuntimeError: The expanded size of the tensor (3) must match the existing size (0) at non-singleton dimension 2.  Target sizes: [224, 224, 3].  Tensor sizes: [0]

Camera polling with XR teleop is disabled pending further investigation. Joint position output is available over DDS.

  • The robotic ultrasound arm is too sensitive or too limited in movement.

Developers may consider reviewing available hand tracking retargeters tailored for different use cases.

  • The teleoperated device does not rotate as far as I would like.

You may update the sample retargeter setting zero_out_xy_rotation=False to increase the range of rotation.

  • The Isaac Lab scene fails to launch with the error `ModuleNotFoundError: No module named 'dds'

Please verify that PYTHONPATH is set as specified in the robotic_ultrasound README.

Known Issues

  • Spawning cameras fails at app startup

The error below may appear if cameras have not been enabled in your app configurations:

RuntimeError: A camera was spawned without the --enable_cameras flag. Please use --enable_cameras to enable rendering.

Please review the first time app settings step to verify that cameras are enabled. Also ensure that the amended app configuration path is properly passed as a launch argument with the --experience flag.

  • The "AR" tab is not visible when the application starts.

Please review the first time app settings step to ensure that the XR extension is enabled in the project.

  • I see a repeating omni.syntheticdata.plugin error when running XR teleoperation

The following error is observed at runtime with Isaac Lab v2.1.0 teleoperation and is under investigation. XR teleoperation may continue despite the console error.

2025-05-23 02:43:01 [29,668ms] [Error] [omni.syntheticdata.plugin] SdPostRenderVarTextureToBuffer : corrupted input renderVar LdrColorSD
2025-05-23 02:43:01 [29,668ms] [Error] [omni.syntheticdata.plugin] SdPostRenderVarTextureToBuffer : corrupted input renderVar DistanceToImagePlaneSD

  • I see an error when I start the XR session: [omni.kit.xr.system.openxr.plugin] Message received from CloudXR does not have a field called 'type'

This error is caused by a deprecated, non-backwards-compatible data message sent by the CloudXR Framework from Apple Vision Pro and can be safely ignored.
