Visualization Tools

Robotic Ultrasound Utilities

This folder contains utility tools for the robotic ultrasound simulation workflow, including a visualization application that provides real-time monitoring of camera feeds, ultrasound imagery, and robot state.

Overview

The utilities in this directory support the robotic ultrasound simulation pipeline with tools for: - Visualization: Real-time display of camera feeds, ultrasound images, and robot state

Usage

To run the visualization:

python -m utils.visualization

This will open a GUI that displays multiple real-time feeds: - Room camera view (RGB or depth) - Wrist camera view (RGB or depth) - Ultrasound image with probe position information

Data Flow Architecture

The visualization application connects to simulated or real data through DDS (Data Distribution Service), a publish-subscribe middleware that enables real-time data exchange between components.

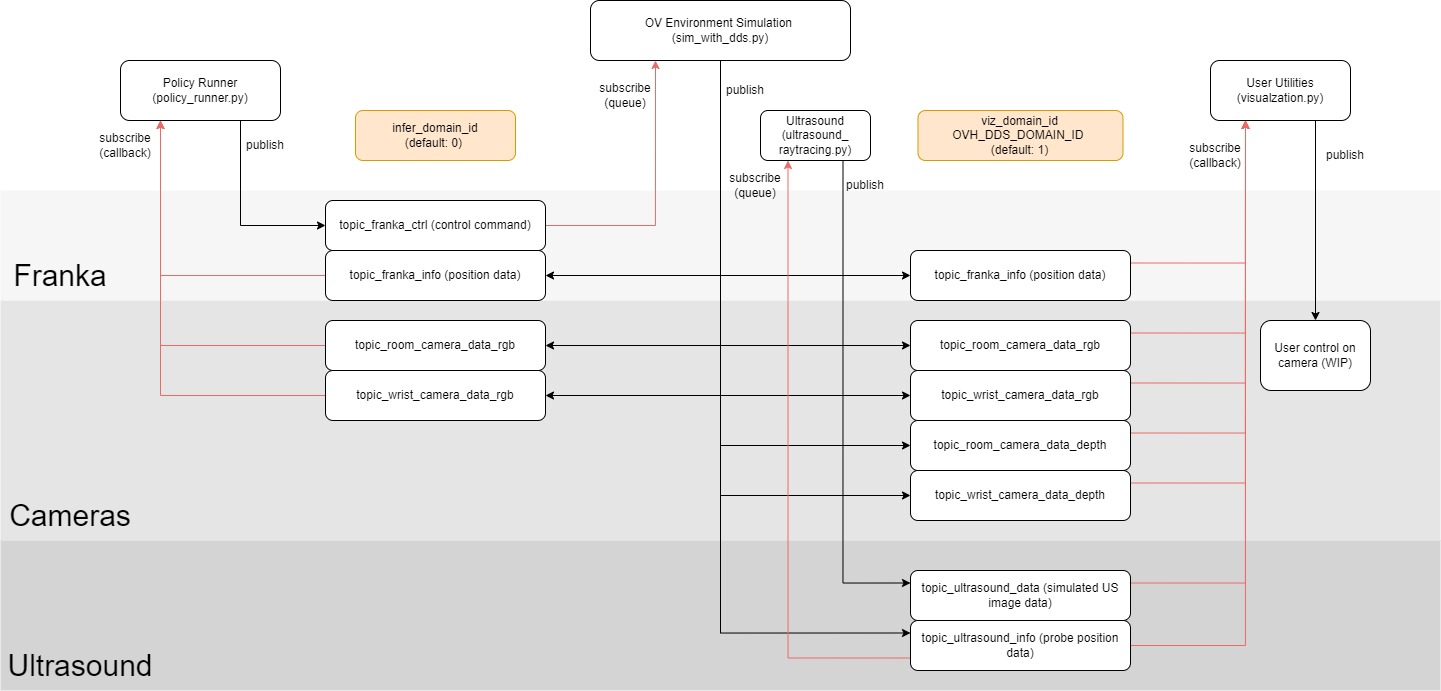

Data Flow Architecture

Policy Running Pipeline

When running with sim_with_dds.py:

Camera Data Flow

  • sim_with_dds.py spawns an Isaac Sim environment with virtual cameras
  • Environment captures RGB/depth images from both room and wrist cameras
  • Images are published to DDS topics (topic_room_camera_data_rgb, topic_wrist_camera_data_rgb, etc.)
  • The visualization app subscribes to these topics via RoomCamPublisher and WristCamPublisher classes
  • When data arrives, the app processes and displays them in real-time in the GUI

Robot State Flow

  • Current robot joint positions are captured and published to topic_franka_info
  • Ultrasound probe pose is published to topic_ultrasound_info
  • Visualization displays this data in the interface

Policy Control Loop

  • run_policy.py subscribes to the same camera and robot state topics
  • The policy generates actions and publishes to topic_franka_ctrl
  • sim_with_dds.py applies these actions to the robot in simulation
  • This closed-loop cycle enables autonomous robot control while visualization shows the process

Teleoperation Pipeline

When running with teleop_se3_agent.py:

Camera & Robot Teleoperation

  • teleop_se3_agent.py creates the simulation environment
  • User controls the robot via keyboard or 3D spacemouse
  • Camera views (RGB/depth) are published to the same DDS topics
  • Robot state is published as in the inference pipeline
  • Visualization receives and displays the same data, but control comes from the human operator

Ultrasound Image Simulation

The ultrasound image is separately simulated and published:

Ultrasound Raytracing

  • ultrasound_raytracing.py runs a physics-based ultrasound simulator (using NVIDIA RaySim)
  • It subscribes to the probe position via topic_ultrasound_info
  • Computes realistic ultrasound images based on where the probe contacts the virtual anatomy
  • Publishes ultrasound image data to topic_ultrasound_data
  • Visualization receives and displays these images alongside camera views

DDS Topic Structure

The visualization application connects to these key topics: - Room camera: topic_room_camera_data_rgb and topic_room_camera_data_depth - Wrist camera: topic_wrist_camera_data_rgb and topic_wrist_camera_data_depth - Robot state: topic_franka_info - Probe position: topic_ultrasound_info - Ultrasound image: topic_ultrasound_data

Each subscriber is implemented as a separate Python thread, allowing asynchronous updates to the UI as data becomes available from different sources. The visualization tool's modular design allows it to connect to either simulated environments or potentially real hardware using the same DDS interface.

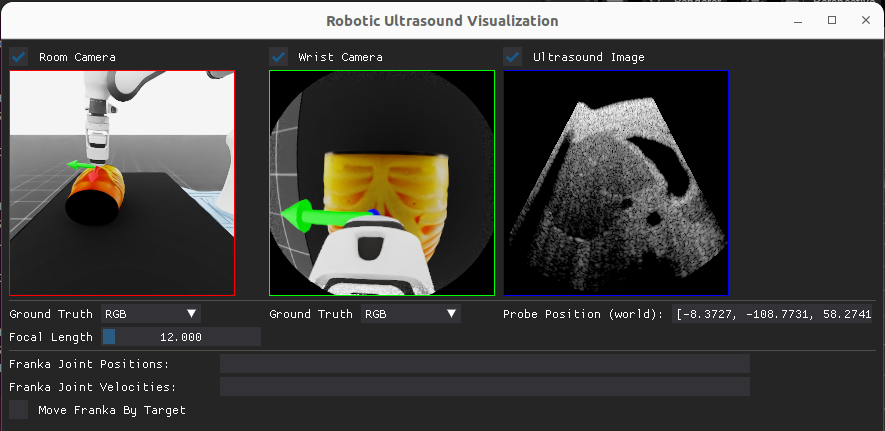

visualization

Troubleshooting

Common Issues

  • No data displayed: Ensure the corresponding simulation or data source is running and publishing data to the expected topics.
  • Missing camera feeds: Verify that the DDS domain IDs match between publishers and subscribers. If issues persist:
  • Try using different domain IDs for each topic to avoid conflicts
  • Add a short delay (time.sleep) after initialization to ensure publishers and subscribers are properly established
  • Check network connectivity if running across multiple machines
