🤖 Robotic Ultrasound Workflow
🔬 Technical Overview

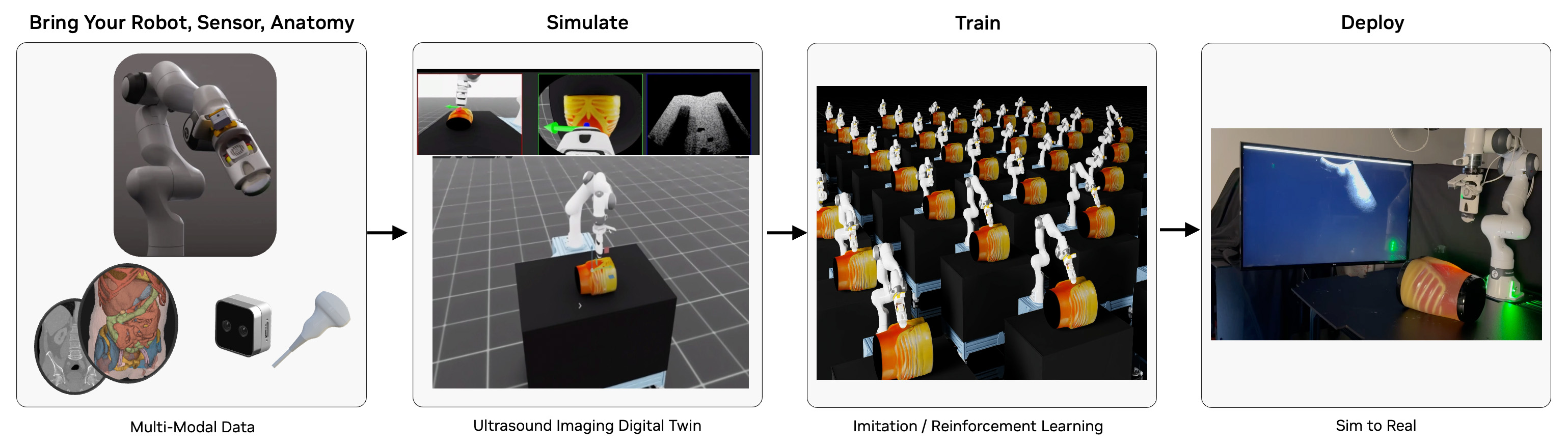

The Robotic Ultrasound Workflow is a comprehensive solution designed for healthcare professionals, medical imaging researchers, and ultrasound device manufacturers working in the field of autonomous ultrasound imaging. This workflow provides a robust framework for simulating, training, and deploying robotic ultrasound systems using NVIDIA's advanced ray tracing technology. By offering a physics-accurate ultrasound simulation environment, it enables researchers to develop and validate autonomous scanning protocols, train AI models for image interpretation, and accelerate the development of next-generation ultrasound systems without requiring physical hardware.
The workflow features a state-of-the-art ultrasound sensor simulation that leverages GPU-accelerated ray tracing to model the complex physics of ultrasound wave propagation. The simulator accurately represents: - Acoustic wave propagation through different tissue types - Tissue-specific acoustic properties (impedance, attenuation, scattering) - Real-time B-mode image generation based on echo signals - Dynamic tissue deformation and movement - Multi-frequency transducer capabilities
This physics-based approach enables the generation of highly realistic synthetic ultrasound images that closely match real-world data, making it ideal for training AI models and validating autonomous scanning algorithms. The workflow supports multiple AI policies (PI0, GR00T N1) and can be deployed using NVIDIA Holoscan for clinical applications, providing a complete pipeline from simulation to real-world deployment.
📋 Table of Contents
🚀 Quick Start
⏱️ Installation Timeline
Estimated Setup Duration: 30-40 minutes (network-dependent asset downloads)
🔍 System Prerequisites Validation
GPU Architecture Requirements
- NVIDIA GPU: RT Core-enabled architecture (Ampere or later)
- Compute Capability: ≥8.6
- VRAM: ≥24GB GDDR6/HBM
- Unsupported: A100, H100 (lack RT Cores for ray tracing acceleration)
🔍 GPU Compatibility Verification
nvidia-smi --query-gpu=name,compute_cap --format=csv,noheader
Driver & System Requirements
- Operating System: Ubuntu 22.04 LTS / 24.04 LTS (x86_64)
- NVIDIA Driver: ≥555.x (RTX ray tracing API support)
- CUDA Toolkit: ≥12.6 (OptiX 8.x compatibility)
- Memory Requirements: ≥24GB GPU memory, ≥64GB system RAM
- Storage: ≥100GB NVMe SSD (asset caching and simulation data)
🔍 Driver Version Validation
nvidia-smi --query-gpu=driver_version --format=csv,noheader,nounits
🔍 CUDA Toolkit Verification
nvcc --version | grep "release" | awk '{print $6}' | cut -d',' -f1
Software Dependencies
- Python: 3.10 (exact version required)
- Conda: Miniconda or Anaconda (installation guide)
Communication Middleware
- RTI Connext DDS: Professional or evaluation license (obtain here)
🐍 Conda Environment Setup
The robotic ultrasound workflow requires conda-based environment management due to mixed pip and system package dependencies.
Installation reference: Miniconda Installation Guide
1️⃣ Repository Clone
git clone https://github.com/isaac-for-healthcare/i4h-workflows.git
cd i4h-workflows
2️⃣ Environment Creation & Dependency Installation
conda create -n robotic_ultrasound python=3.10 -y
conda activate robotic_ultrasound
bash tools/env_setup_robot_us.sh
⚠️ Expected Build Time: The environment setup process takes 40-60 minutes. You may encounter intermediary warnings about macaroon bakery library dependencies - these are non-critical and can be ignored.
3️⃣ Environment Variable Configuration
export PYTHONPATH=`pwd`/workflows/robotic_ultrasound/scripts:$PYTHONPATH
export RTI_LICENSE_FILE=<path-to-your-rti-license-file>
💾 Persistent Environment Configuration
echo "export PYTHONPATH=`pwd`/workflows/robotic_ultrasound/scripts:\$PYTHONPATH" >> ~/.bashrc
echo "export RTI_LICENSE_FILE=<path-to-your-rti-license-file>" >> ~/.bashrc
source ~/.bashrc
✅ Installation Complete - Your robotic ultrasound simulation environment is operational.
⚡ Running Workflows
🔬 Experimental Configurations
🤖 Policy-Based Control with PI0
conda activate robotic_ultrasound
(python -m policy_runner.run_policy --policy pi0 & python -m simulation.environments.sim_with_dds --enable_cameras & wait)
Expected Behavior: - Isaac Sim physics simulation with Franka robotic arm. - PI0 policy inference pipeline processing visual input streams. - DDS-based communication for real-time control commands and sensor feedback.
Note: You may see "IsaacSim 4.5.0 is not responding". It can take approximately several minutes to download the assets and models from the internet and load them to the scene. If this is the first time you run the workflow, it can take up to 10 minutes. It may take an additional 1 or 2 minutes for the policy to start inferencing, so the robot arm may not move immediately.
⏳ Initial Load Time: First execution may require 10+ minutes for asset download and scene initialization
🔊 Integrated Ultrasound Raytracing Pipeline
conda activate robotic_ultrasound
(python -m policy_runner.run_policy --policy pi0 & \
python -m simulation.environments.sim_with_dds --enable_cameras & \
python -m simulation.examples.ultrasound_raytracing & \
python -m utils.visualization & \
wait)
Expected Behavior: - Full autonomous robotic ultrasound scanning pipeline. - Real-time physics-based ultrasound image synthesis via GPU ray tracing. - Multi-modal sensor data visualization (RGB cameras + ultrasound B-mode).
🎮 Manual Teleoperation Interface
conda activate robotic_ultrasound
(python -m simulation.examples.ultrasound_raytracing & \
python -m simulation.environments.teleoperation.teleop_se3_agent --enable_cameras & \
python workflows/robotic_ultrasound/scripts/utils/visualization.py & \
wait)
Expected Behavior: - Direct SE(3) pose control via keyboard/SpaceMouse/gamepad input. - Real-time ultrasound image generation during manual scanning. - Multi-camera visualization with synchronized ultrasound feedback.
Control Mapping: Reference Teleoperation Documentation
🔄 Process Termination: Use
Ctrl+Cfollowed bybash workflows/robotic_ultrasound/reset.shto cleanly terminate all distributed processes.
🎯 Workflow Component Matrix
| Category | Script | Usage Scenario | Purpose | Documentation | Key Requirements | Expected Runtime |
|---|---|---|---|---|---|---|
| 🚀 Quick Start | simulation/imitation_learning/pi0_policy/eval.py | First-time users, policy testing | PI0 policy evaluation | Simulation README | PI0 policy, Isaac Sim | 2-5 minutes |
| 🔄 Multi-Component | simulation/environments/sim_with_dds.py | Full pipeline testing | Main simulation with DDS communication | Simulation README | Isaac Sim, DDS | Continuous |
| 🎮 Interactive Control | simulation/environments/teleoperation/teleop_se3_agent.py | Manual control, data collection | Manual robot control via keyboard/gamepad | Simulation README | Isaac Sim, input device | Continuous |
| 🩺 Ultrasound Simulation | simulation/examples/ultrasound_raytracing.py | Realistic ultrasound imaging | Physics-based ultrasound image generation | Simulation README | RayTracing Simulator | Continuous |
| 🤖 Policy Inference | policy_runner/run_policy.py | Policy deployment | Generic policy runner for PI0 and GR00T N1 models | Policy Runner README | Model inference, DDS | Continuous |
| 🧠 Policy Training | training/pi_zero/train.py | Model development | Train PI0 imitation learning models | PI0 Training README | Training data, GPU | Depends on the dataset size |
| 🧠 Policy Training | training/gr00t_n1/train.py | Advanced model development | Train GR00T N1 foundation models | GR00T N1 Training README | Training data, GPU | Depends on the dataset size |
| 🔄 Data Processing | training/convert_hdf5_to_lerobot.py | Data preprocessing | Convert HDF5 data to LeRobot format | GR00T N1 Training README | HDF5 files | Depends on the dataset size |
| 📈 Evaluation | simulation/evaluation/evaluate_trajectories.py | Performance analysis | Compare predicted vs ground truth trajectories | Evaluation README | Trajectory data | Depends on the dataset size |
| 🏗️ State Machine | simulation/environments/state_machine/liver_scan_sm.py | Automated data collection | Automated liver scanning protocol | Simulation README | Isaac Sim | 5-15 minutes |
| 🗂️ Data Collection | simulation/environments/state_machine/liver_scan_sm.py | Automated data collection | Automated liver scanning protocol | Simulation README | Isaac Sim | 5-15 minutes |
| 🔄 Replay | simulation/environments/state_machine/replay_recording.py | Data validation | Replay recorded robot trajectories | Simulation README | Recording files | 2-5 minutes |
| 🎯 Customization Tutorial | tutorials/assets/bring_your_own_patient/README.md | Patient data integration | Convert CT/MRI scans to USD for simulation | Patient Tutorial | MONAI, medical imaging data | Variable |
| 🎯 Customization Tutorial | tutorials/assets/bring_your_own_robot/replace_franka_hand_with_ultrasound_probe.md | Robot customization | Replace Franka hand with ultrasound probe | Robot Tutorial | Isaac Sim, CAD/URDF files | 30-60 minutes |
| 🥽 XR Teleoperation Tutorial | tutorials/assets/bring_your_own_xr/README.md | Mixed reality control | OpenXR hand tracking with Apple Vision Pro | Bring Your Own XR README | Isaac Lab, CloudXR Runtime, Apple Vision Pro | 10-15 minutes |
| 📊 Visualization | utils/visualization.py | Monitoring simulations, debugging | Real-time camera feeds and ultrasound display | Utils README | DDS, GUI | Continuous |
| 🏥 Hardware-in-the-loop | holoscan_apps/clarius_cast/clarius_cast.py | Hardware-in-the-loop | Clarius Cast ultrasound probe integration | Holoscan Apps README | Clarius probe, Holoscan | Continuous |
| 🏥 Hardware-in-the-loop | holoscan_apps/clarius_solum/clarius_solum.py | Hardware-in-the-loop | Clarius Solum ultrasound probe integration | Holoscan Apps README | Clarius probe, Holoscan | Continuous |
| 🏥 Hardware-in-the-loop | holoscan_apps/realsense/camera.py | Hardware-in-the-loop | RealSense depth camera integration | Holoscan Apps README | RealSense camera, Holoscan | Continuous |
| 📡 Communication | dds/publisher.py | Data streaming | DDS data publishing utilities | DDS README | DDS license | Continuous |
| 📡 Communication | dds/subscriber.py | Data reception | DDS data subscription utilities | DDS README | DDS license | Continuous |
🔧 Detailed Setup Instructions
📋 Advanced Configuration & Troubleshooting
### 🔩 Hardware Architecture Requirements #### Compute Infrastructure - **Operating System**: Ubuntu 22.04 LTS / 24.04 LTS (x86_64) - **GPU Architecture**: NVIDIA RTX/GeForce RTX/Quadro RTX with RT Cores - **Memory Requirements**: ≥24GB GPU memory, ≥64GB system RAM - **Storage**: ≥100GB NVMe SSD (asset caching and simulation data) ### 🏗️ Framework Architecture Dependencies The robotic ultrasound workflow is built on the following dependencies: - [IsaacSim 4.5.0](https://docs.isaacsim.omniverse.nvidia.com/4.5.0/index.html) - [IsaacLab 2.1.0](https://isaac-sim.github.io/IsaacLab/v2.1.0/index.html) - [Gr00T N1](https://github.com/NVIDIA/Isaac-GR00T) - [Cosmos Transfer 1](https://github.com/nvidia-cosmos/cosmos-transfer1/tree/main) - [openpi](https://github.com/Physical-Intelligence/openpi) and [lerobot](https://github.com/huggingface/lerobot) - [Raytracing Ultrasound Simulator](https://github.com/isaac-for-healthcare/i4h-sensor-simulation/tree/v0.2.0/ultrasound-raytracing) - [RTI Connext DDS](https://www.rti.com/products) ### 🐳 Docker Installation Procedures Please refer to the [Robotic Ultrasound Docker Container Guide](./docker/README.md) for detailed instructions on how to run the workflow in a Docker container. ### 🔨 Conda Installation Procedures #### 1️⃣ NVIDIA Graphics Driver Installation Install or upgrade to the latest NVIDIA driver from [NVIDIA website](https://www.nvidia.com/en-us/drivers/) #### 2️⃣ CUDA Toolkit Installation Install CUDA from [NVIDIA CUDA Quick Start Guide](https://docs.nvidia.com/cuda/cuda-quick-start-guide/index.html)# Download CUDA installer
wget https://developer.download.nvidia.com/compute/cuda/repos/ubuntu2204/x86_64/cuda-keyring_1.1-1_all.deb
sudo dpkg -i cuda-keyring_1.1-1_all.deb
sudo apt-get update
sudo apt-get -y install cuda-toolkit-12-8
echo 'export PATH=/usr/local/cuda-12.8/bin:$PATH' >> ~/.bashrc
echo 'export LD_LIBRARY_PATH=/usr/local/cuda-12.8/lib64:$LD_LIBRARY_PATH' >> ~/.bashrc
source ~/.bashrc
export RTI_LICENSE_FILE=/path/to/rti_license.dat
# Install Miniconda
wget https://repo.anaconda.com/miniconda/Miniconda3-latest-Linux-x86_64.sh
bash Miniconda3-latest-Linux-x86_64.sh
# Create isolated environment
conda create -n robotic_ultrasound python=3.10 -y
conda activate robotic_ultrasound
git clone https://github.com/isaac-for-healthcare/i4h-workflows.git
cd i4h-workflows
# Install base dependencies + policy-specific packages
bash tools/env_setup_robot_us.sh --policy pi0 # PI0 policies
# OR
bash tools/env_setup_robot_us.sh --policy gr00tn1 # GR00T N1 foundation models
# OR
bash tools/env_setup_robot_us.sh --policy none # Base dependencies only
i4h-asset-retrieve
# Python module resolution
export PYTHONPATH=<i4h-workflows-root>/workflows/robotic_ultrasound/scripts:<i4h-workflows-root>
# DDS communication middleware
export RTI_LICENSE_FILE=<path-to-rti-license>
# Optional: CUDA runtime optimization
export CUDA_VISIBLE_DEVICES=0 # Single GPU selection
🛠️ Troubleshooting
⚠️ Common Integration Issues
🔧 Dependency Resolution Conflicts
ERROR: pip's dependency resolver does not currently take into account all the packages...
isaaclab 0.34.9 requires torch==2.5.1, but you have torch 2.6.0 which is incompatible.
🔗 Module Import Resolution
Symptoms: ModuleNotFoundError or Error while finding module specification for 'xxx' during script execution
Resolution: Verify PYTHONPATH includes both scripts/ directory and repository root.
🆘 Support Resources
- Technical Documentation: Component-specific README files
- Issue Tracking: GitHub Issues
