Robotic Surgery Workflow

🩺 Technical Overview

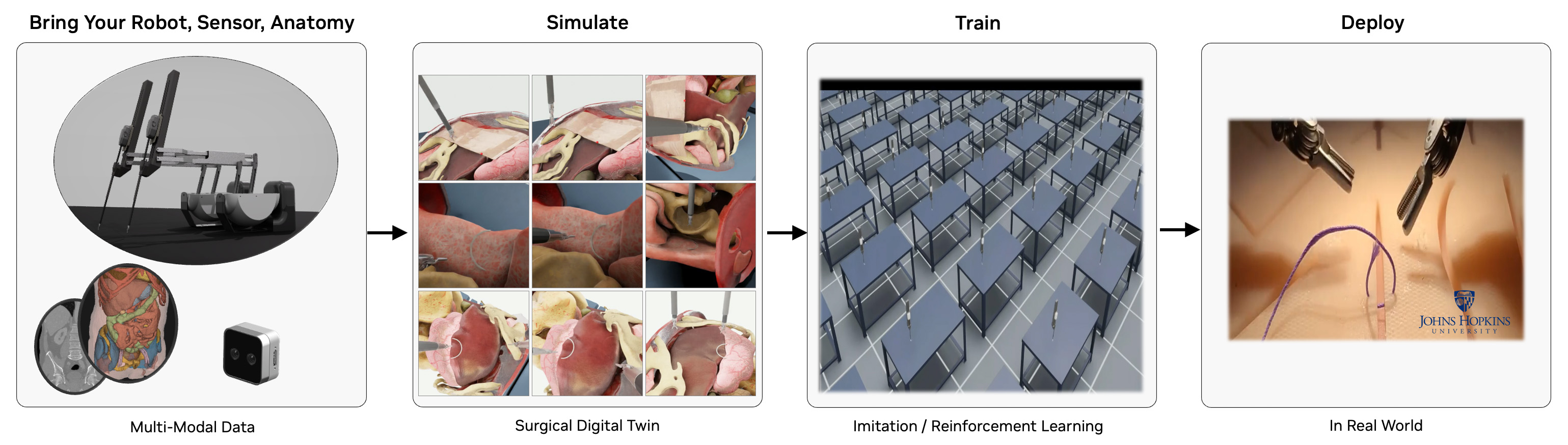

The Robotic Surgery Workflow is a comprehensive solution designed for healthcare professionals and researchers working in the field of robotic-assisted surgery. This workflow provides a robust framework for simulating, training, and analyzing robotic surgical procedures in a virtual environment. It leverages NVIDIA's ray tracing capabilities to create highly realistic surgical simulations, enabling surgeons to practice complex procedures, researchers to develop new surgical techniques, and medical institutions to enhance their training programs. By offering a safe, controlled environment for surgical practice and research, this workflow helps improve surgical outcomes, reduce training costs, and advance the field of robotic surgery.

The framework supports multiple surgical robots and tasks:

dVRK (da Vinci Research Kit): Patient Side Manipulator (PSM) for minimally invasive surgery.
STAR (Smart Tissue Autonomous Robot): Autonomous surgical robot for tissue manipulation.
Multi-arm coordination: Dual-arm surgical robot synchronization.
Surgical task simulation: Needle lifting, suturing, peg transfer, etc.

🚀 Quick Start

⏱️ Installation Timeline

Estimated Setup Duration: 40-60 minutes (network-dependent asset downloads)

🔍 System Prerequisites Validation

GPU Architecture Requirements

NVIDIA GPU: RT Core-enabled architecture (Ampere or later)
Compute Capability: ≥8.6
VRAM: ≥24GB GDDR6/HBM
Unsupported: A100, H100 (lack RT Cores for ray tracing acceleration)

🔍 GPU Compatibility Verification

nvidia-smi --query-gpu=name,compute_cap --format=csv,noheader

Verify output shows compute capability ≥8.6 (Ampere/Ada Lovelace/Hopper with RT Cores)

Driver & System Requirements

Operating System: Ubuntu 22.04 LTS / 24.04 LTS (x86_64)
NVIDIA Driver: ≥535.129.03 (RTX ray tracing API support)
Memory Requirements: ≥8GB GPU memory, ≥32GB system RAM
Storage: ≥100GB NVMe SSD (asset caching and simulation data)

🔍 Driver Version Validation

nvidia-smi --query-gpu=driver_version --format=csv,noheader,nounits

Software Dependencies

Python: 3.10 (exact version required)

🐍 Conda Environment Setup

The robotic surgery workflow can be installed in a conda-based environment for dependency isolation and compatibility.

Prerequisites: Ensure Miniconda is installed on your system.

1️⃣ Repository Clone

git clone https://github.com/isaac-for-healthcare/i4h-workflows.git
cd i4h-workflows

2️⃣ Environment Creation & Dependency Installation

conda create -n robotic_surgery python=3.10 -y
conda activate robotic_surgery
bash tools/env_setup_robot_surgery.sh

⚠️ Expected Build Time: The environment setup process takes 40-60 minutes. You may encounter intermediary warnings about conflicting library dependencies - these are non-critical and can be ignored.

3️⃣ Environment Variable Configuration

# Set PYTHONPATH for current session
export PYTHONPATH=$(pwd)/workflows/robotic_surgery/scripts

💾 Persistent Environment Configuration (Recommended)

To avoid setting PYTHONPATH for every new terminal session:

# Add to your shell profile
echo "export PYTHONPATH=$(pwd)/workflows/robotic_surgery/scripts:\$PYTHONPATH" >> ~/.bashrc
source ~/.bashrc

This ensures the environment variables are automatically set when you open new terminals. **Note:** If you have `robotic_ultrasound` workflow scripts or previous versions of `robotic_surgery` workflow scripts in your `PYTHONPATH`, you can reset it to include only the `robotic_surgery` scripts by running `export PYTHONPATH=$(pwd)/workflows/robotic_surgery/scripts`

✅ Installation Complete - Your robotic surgery simulation environment is ready.

⚡ Running Workflows

🎯 Quick Start Examples

🤖 Basic Robot Control - dVRK PSM Reach

conda activate robotic_surgery
python workflows/robotic_surgery/scripts/simulation/scripts/environments/state_machine/reach_psm_sm.py

Expected Behavior: - Isaac Sim launches with dVRK PSM simulation - PSM arm moves to predefined target poses

⏳ First Run Loading Time: Initial simulation loading takes 5-10 minutes for asset download and scene initialization. Isaac Sim may appear frozen with no console progress indication - this is normal behavior.

🔬 Surgical Task Simulation - Needle Lifting

conda activate robotic_surgery
python workflows/robotic_surgery/scripts/simulation/scripts/environments/state_machine/lift_needle_sm.py

Expected Behavior: - Isaac Sim launches with robotic surgery simulation - Surgical simulation with needle manipulation - Precise grasping and lifting operations

🧠 Reinforcement Learning Training

conda activate robotic_surgery
# Training (45+ minutes)
python workflows/robotic_surgery/scripts/simulation/scripts/reinforcement_learning/rsl_rl/train.py --task Isaac-Reach-PSM-v0 --headless

# Evaluation/Play mode
python workflows/robotic_surgery/scripts/simulation/scripts/reinforcement_learning/rsl_rl/play.py --task Isaac-Reach-PSM-Play-v0

Expected Behavior: - RSL-RL agent training with GPU acceleration - TensorBoard logging for training progress monitoring - Trained model evaluation in simulation environment

🎯 Workflow Component Matrix

Category	Script	Usage Scenario	Purpose	Documentation	Key Requirements	Expected Runtime
🚀 Basic Control	reach_psm_sm.py	First-time users, basic robot control	Single-arm dVRK PSM reaching tasks	State Machine README	Isaac Lab	2-5 minutes
🤖 Dual-Arm Control	reach_dual_psm_sm.py	First-time users, basic robot control	Dual-arm dVRK PSM coordination	State Machine README	Isaac Lab	2-5 minutes
⭐ STAR Robot	reach_star_sm.py	First-time users, basic robot control	STAR robot reaching demonstrations	State Machine README	Isaac Lab	2-5 minutes
🪡 Needle Manipulation	lift_needle_sm.py	First-time users, basic robot control	Suture needle lifting and manipulation	State Machine README	Isaac Lab	3-7 minutes
🫁 Realistic OR Simulation	lift_needle_organs_sm.py	Realistic surgical simulation in an operating room	Needle lifting	State Machine README	Isaac Lab	3-7 minutes
🧩 Peg Transfer	lift_block_sm.py	First-time users, basic robot control	Peg transfer surgical training task	State Machine README	Isaac Lab	2-5 minutes
🧠 RL Training	train.py	AI model development	Reinforcement learning agent training	RSL-RL README	Isaac Lab	45+ minutes
🎮 RL Evaluation	play.py	Model validation	Trained agent evaluation and visualization	RSL-RL README	Isaac Lab, trained model	5-10 minutes
🎮 MIRA Teleoperation Tutorial	teleoperate_virtual_incision_mira.py	Interactive robot control	Virtual Incision MIRA keyboard teleoperation	Virtual Incision MIRA README	Isaac Lab	5-10 minutes

🎓 Understanding the Workflow Architecture

Isaac Sim Environment
├── Robots (dVRK PSM, STAR)
├── Surgical Instruments (needles, pegs, operating room equipment)
├── Anatomical Models (organs)
└── Control Systems (state machines, RL)

🔧 Detailed Setup Instructions

📋 Advanced Configuration & Dependencies

### 🏗️ Framework Architecture Dependencies The robotic surgery workflow is built on the following core dependencies: - [IsaacSim 4.5.0](https://docs.isaacsim.omniverse.nvidia.com/4.5.0/index.html) - [IsaacLab 2.1.0](https://isaac-sim.github.io/IsaacLab/v2.1.0/index.html) - [RSL-RL](https://github.com/leggedrobotics/rsl_rl) for reinforcement learning ### 🐳 Docker Installation Procedures Please refer to the [Robotic Surgery Docker Container Guide](./docker/README.md) for detailed instructions on how to run the workflow in a Docker container. ### 🔨 Conda Installation Procedures #### 1️⃣ NVIDIA Graphics Driver Installation Install or upgrade to the latest NVIDIA driver from [NVIDIA website](https://www.nvidia.com/en-us/drivers/) **Note**: The workflow requires driver version ≥535.129.03 for ray tracing capabilities. #### 2️⃣ Conda Installation Install Miniconda following the [official guide](https://www.anaconda.com/docs/getting-started/miniconda/install):

# Download and install Miniconda
wget https://repo.anaconda.com/miniconda/Miniconda3-latest-Linux-x86_64.sh
bash Miniconda3-latest-Linux-x86_64.sh

#### 3️⃣ Environment Creation and Setup

# Create and activate environment
conda create -n robotic_surgery python=3.10 -y
conda activate robotic_surgery

# Clone repository and install dependencies
git clone https://github.com/isaac-for-healthcare/i4h-workflows.git
cd i4h-workflows
bash tools/env_setup_robot_surgery.sh

#### 4️⃣ Environment Variable Configuration

# Current session
export PYTHONPATH=$(pwd)/workflows/robotic_surgery/scripts:$PYTHONPATH

# Persistent configuration (recommended)
echo "export PYTHONPATH=$(pwd)/workflows/robotic_surgery/scripts:\$PYTHONPATH" >> ~/.bashrc
source ~/.bashrc

### 📦 Asset Management #### Automated Asset Retrieval Assets are automatically downloaded when running workflows for the first time. #### Manual Asset Retrieval

# Download all assets (65GB, 30-60 minutes)
i4h-asset-retrieve

**Asset Storage**: `~/.cache/i4h-assets//`

🛠️ Troubleshooting

⚠️ Common Issues

🐌 Long Loading Times

Symptoms: Isaac Sim appears frozen during initial loading Resolution: This is expected behavior. Initial loading takes 5-10 minutes with no progress indication. Be patient and avoid force-closing the application.

🔗 Module Import Errors

Symptoms: ModuleNotFoundError when running scripts Resolution: Ensure PYTHONPATH includes the scripts directory:

export PYTHONPATH=$(pwd)/workflows/robotic_surgery/scripts

🔧 Environment Build Issues

Symptoms: Conflicting library dependency warnings during setup Resolution: These warnings are non-critical and can be ignored. The environment will function correctly.

🆘 Support Resources

Issue Tracking: GitHub Issues
